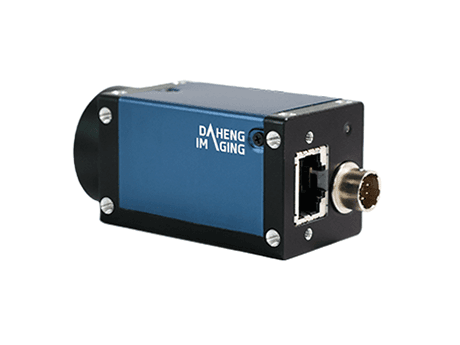

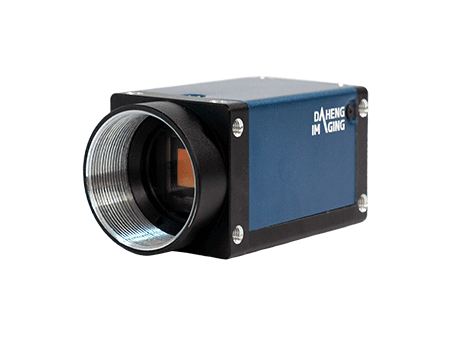

MER3-2000-15G3M-P

Specifications

Model

MER3-2000-15G3M-P

Product Families

MERCURY3

Resolution

5496×3672

Frame Rate (fps)

13.92

Sensor Manufacturer

Sony

Sensor

1" IMX183 Rolling shutter CMOS

Pixel Size

2.4μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

13.19 × 8.81 mm

Диагонал на сензора

15.86 mm

Pixel Bit Depth

8 bit, 12 bit

Data Interface

2.5GigE

Lens Mount

C

Spectrum

Mono

Pixel Formats

Mono8，Mono12

Signal Noise Ratio

41.95 dB

Exposure Time

Standard: 16μs~1μs

Gain

0dB ~ 24dB

Binning

1×1, 1×2, 1×4, 2×1, 2×2, 4×1, 4×4

Decimation

FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 4×1, 4×4

Reverse X/Y

Reverse X/Y

I/O Interface

1 input with opto-isolated, 2 programmable GPIOs

Power Requirement

12 ~ 24 VDC or PoE

Power Consumption

< 5 W @ 12V / PoE

Operating Temp.

0°C ~ +50°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

29 mm × 29 mm × 50.6 mm (w/o connectors)

Weight

67 g

Conformity

CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
