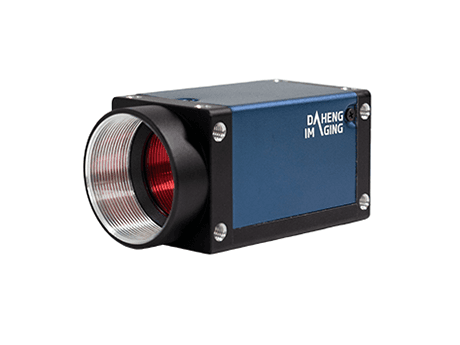

MER3-1220-24G3C-P

Specifications

Model

MER3-1220-24G3C-P

Product Families

MERCURY3

Resolution

4024×3036

Frame Rate (fps)

23.0

Sensor Manufacturer

Sony

Sensor

1/1.7" IMX226 Rolling shutter CMOS

Pixel Size

1.85μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

7.44 × 5.62 mm

Диагонал на сензора

9.33 mm

Pixel Bit Depth

8 bit, 12 bit

Data Interface

2.5GigE

Lens Mount

C

Spectrum

Color

Pixel Formats

Bayer RG8, Bayer RG12

Signal Noise Ratio

40.48 dB

Exposure Time

Standard: 11μs~1μs, GRR: 11μs~1s

Gain

0dB ~ 24dB

Binning

1×1, 1×2, 1×4, 2×1, 2×2, 4×1, 4×4

Decimation

FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 4×1, 4×4

Reverse X/Y

Reverse X/Y

I/O Interface

1 input with opto-isolated, 2 programmable GPIOs

Power Requirement

12 ~ 24 VDC or PoE

Power Consumption

< 5 W @ 12V / PoE

Operating Temp.

0°C ~ +50°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

29 mm × 29 mm × 50.6 mm (w/o connectors)

Weight

65 g

Conformity

CE, RoHS, FCC, GigE Vision, GenICam
