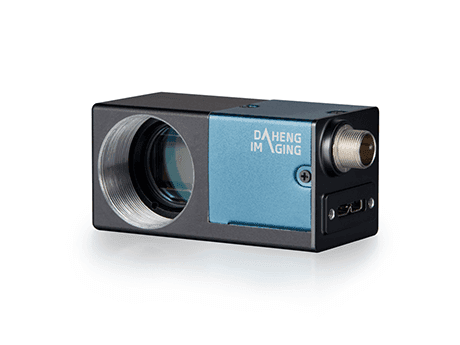

MER2-231-41U3M-W90

Specifications

Model

MER2-231-41U3M-W90

Product Families

MERCURY2

Resolution

1920×1200

Frame Rate (fps)

41

Sensor Manufacturer

Sony

Sensor

1/1.2" IMX249 Global shutter CMOS

Pixel Size

5.86μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

11.25 × 7.03 mm

Диагонал на сензора

13.27 mm

Pixel Bit Depth

8 bit, 10 bit, 12bit

Data Interface

USB3.0

Lens Mount

C，CS

Spectrum

Mono

Pixel Formats

Mono8, Mono10, Mono12

Signal Noise Ratio

45.33 dB

Exposure Time

Standard: 20μs ~ 1s

Gain

0dB ~ 24dB

Binning

1×1, 1×2, 2×1, 2×2

Decimation

FPGA: 1×1, 1×2, 2×1, 2×2

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 2 programmable GPIOs

Power Requirement

Power over USB3.0

Power Consumption

1.70 W @ 5 VDC

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

29 mm × 29 mm × 58.8 mm (w/o connectors)

Weight

78 g

Conformity

CE, RoHS, FCC, ICES, UKCA, USB3.0 Vision, GenICam
