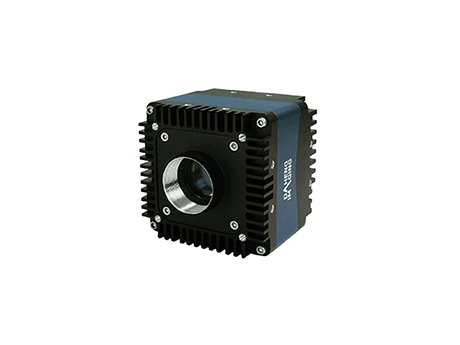

MARS-420-238U3DM-UV

Specifications

Model

MARS-420-238U3DM-UV

Product Families

MARS

Resolution

2048 × 2048

Frame Rate (fps)

238

Sensor Manufacturer

Gpixel

Sensor

SCMOS

Pixel Size

6.5μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

13.31 × 13.31 mm

Диагонал на сензора

18.83 mm

Pixel Bit Depth

8bit, 12bit, 16bit

Data Interface

USB3.2

Lens Mount

C，M42

Spectrum

UV

Pixel Formats

Mono8/Mono12/Mono12p@HighSpeed, Mono12/Mono12p@HighSensitivity, Mono16@HighDynamicRange

Signal Noise Ratio

41.56dB@HighDynamicRange, 30.29dB@HighSpeed, 30.06dB@HighSensitivity

Dynamic Range

70.94dB@HighDynamicRange, 57.32dB@HighSpeed, 57.32dB@HighSensitivity

Exposure Time

Standard: 20μs~0.5s

Gain

AnalogAll：10.5dB / 13.5dB, DigitalAll：0dB ~ 24dB

Binning

FPGA：1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 1 bidirectional GPIO

Power Requirement

12VDC-10% ~ 24VDC+10%

Power Consumption

7.3W @ 12VDC

Operating Temp.

0° C ~ +45° C

Storage Temp.

19° C ~ +25° C

Operating Humidity

10% ~ 60%

Dimensions (W×H×L)

65mm × 65mm × 62.55mm

Weight

369 g

Conformity

CE，RoHS，FCC，ICES，UKCA，USB3 Vision®，GenICam®
