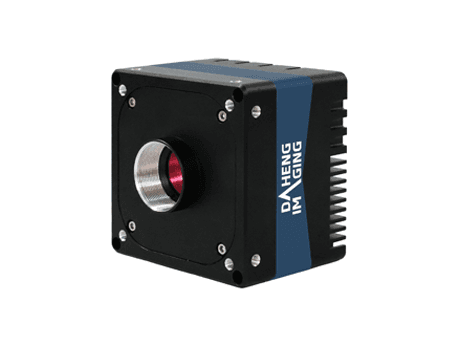

MARS-2625-150X2M-NF

Specifications

Model

MARS-2625-150X2M-NF

Product Families

MARS

Resolution

5120×5120

Frame Rate (fps)

150.1

Sensor Manufacturer

Gpixel

Sensor

12.8mm × 12.8mm GMAX0505 Global shutter CMOS

Pixel Size

2.5μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

12.8 × 12.8 mm

Диагонал на сензора

18.1 mm

Pixel Bit Depth

8 bit，10 bit

Data Interface

CoaXPress

Lens Mount

C，F，M58

Spectrum

Mono

Pixel Formats

Mono8, Mono10

Signal Noise Ratio

37.7 dB

Exposure Time

9μs ~ 1s

Gain

Digital Gain: 0dB~16dB, Analog Gain: Default: 1.25dB

Binning

1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Decimation

Horizontal FPGA, Vertical Sensor: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 1 bidirectional GPIO, 1 RS232

Power Requirement

24 VDC or PoCXP

Power Consumption

15W@24V, ambient temp. 25°C, FAN (ON), 13W@24V, ambient temp. 25°C, FAN (OFF)

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

74mm × 74mm × 75.45mm (M58), 74mm × 74mm × 81mm (C)

Weight

567 g (M58), 511 g (C)

Conformity

CE, RoHS, FCC, ICES, UKCA, CoaXPress2.0, GenICam
