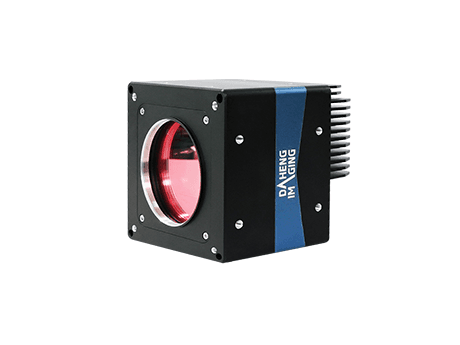

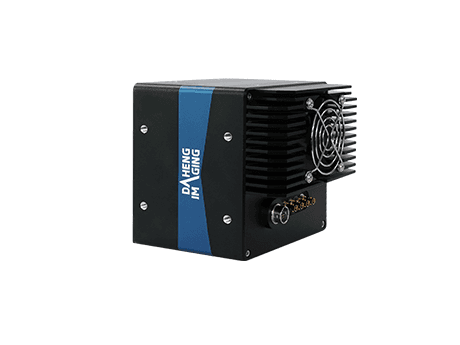

MARS-24600-12X2M-TF

Specifications

Model

MARS-24600-12X2M-TF

Product Families

MARS

Resolution

19200×12800

Frame Rate (fps)

10.54

Sensor Manufacturer

Sony

Sensor

64.84mm IMX811 245.76MP Rolling shutter CMOS

Pixel Size

2.81μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

53.95 × 35.97 mm

Диагонал на сензора

64.84 mm

Pixel Bit Depth

8 bit，12 bit，14 bit，16 bit

Data Interface

CoaXPress

Lens Mount

M72

Spectrum

Mono

Pixel Formats

Mono8, Mono12, Mono14, Mono16

Signal Noise Ratio

44.2 dB

Exposure Time

Bayer RG8: 144μs ~ 60s. Bayer RG12: 123μs ~ 60s. Bayer RG14: 144μs ~ 60s. Bayer RG16: 287μs ~ 60s

Gain

Digital Gain: 0dB~24dB, Analog Gain: 0dB~16dB

Decimation

1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 1 bidirectional GPIO, 1 RS232

Power Requirement

24 VDC or PoCXP

Power Consumption

Typical: 40.6W@24V, ambient temp. 25°C, Sensor temp. 10°C, TEC (ON), FAN (ON). 44W@Rapid cooling stage, TEC (ON), FAN (ON)

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

120mm × 120mm × 118mm

Weight

2340 g

Conformity

CE, RoHS, FCC, ICES, UKCA, CoaXPress2.0, GenICam
