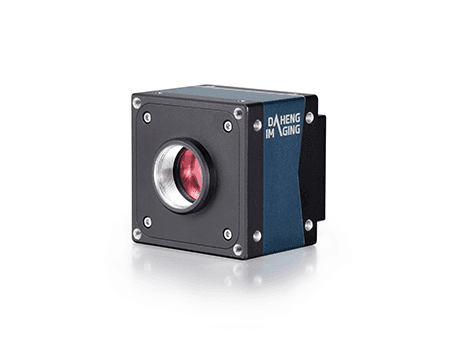

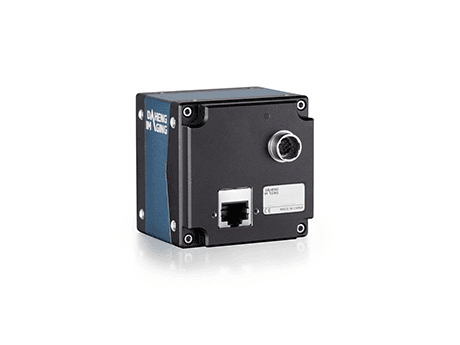

MARS-1231-46G5M-P

Specifications

Model

MARS-1231-46G5M-P

Product Families

MARS

Resolution

4096×3000

Frame Rate (fps)

47

Sensor Manufacturer

Sony

Sensor

1.1" IMX253 Global shutter CMOS

Pixel Size

3.45μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

14.13 × 10.35 mm

Диагонал на сензора

17.52 mm

Pixel Bit Depth

8 bit，10 bit

Data Interface

5GigE

Lens Mount

C

Spectrum

Mono

Pixel Formats

Mono8，Mono10

Signal Noise Ratio

40.68 dB

Power Requirement

12 ~ 24 VDC or PoE

Power Consumption

< 9 W @ 12 VDC；< 10.5 W @ PoE

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

62 mm × 62 mm × 53.2 mm (w/o connectors)

Weight

305 g

Conformity

CE, RoHS, GigE Vision, GenICam
