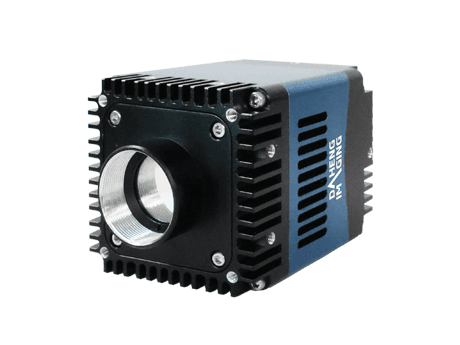

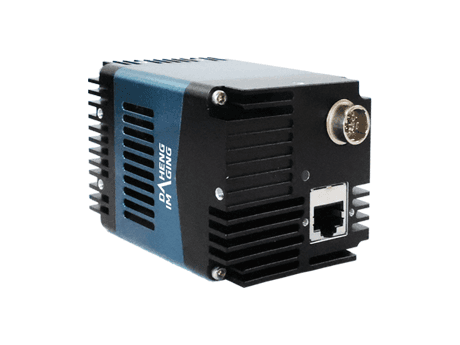

MARS-033-262GM-P-TN-SWIR F02

Specifications

Model

MARS-033-262GM-P-TN-SWIR F02

Product Families

MARS

Resolution

640×512

Frame Rate (fps)

262.1

Sensor Manufacturer

Sony

Sensor

1/4" IMX991 Global shutter CMOS

Pixel Size

5μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

3.2 × 2.56 mm

Диагонал на сензора

4.1 mm

Pixel Bit Depth

8 bit, 10 bit, 12 bit

Data Interface

GigE

Lens Mount

C

Spectrum

Mono，SWIR

Pixel Formats

Mono8, Mono10, Mono12, Mono10Packed, Mono12Packed

Signal Noise Ratio

51 dB

Exposure Time

Ultra short: 3μs~100μs;Standard: 13μs~1s

Gain

0dB ~ 24dB

Binning

1×1, 1×2, 2×1, 2×2

Decimation

Sensor: 1×1, 2×2

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 1 programmable GPIO

Power Requirement

12 ~ 24 VDC or PoE

Power Consumption

13W @ Max. cooling

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

58 mm × 58 mm × 75.5 mm (w/o connectors)

Weight

407 g

Conformity

CE, RoHS, GigE Vision, GenICam
