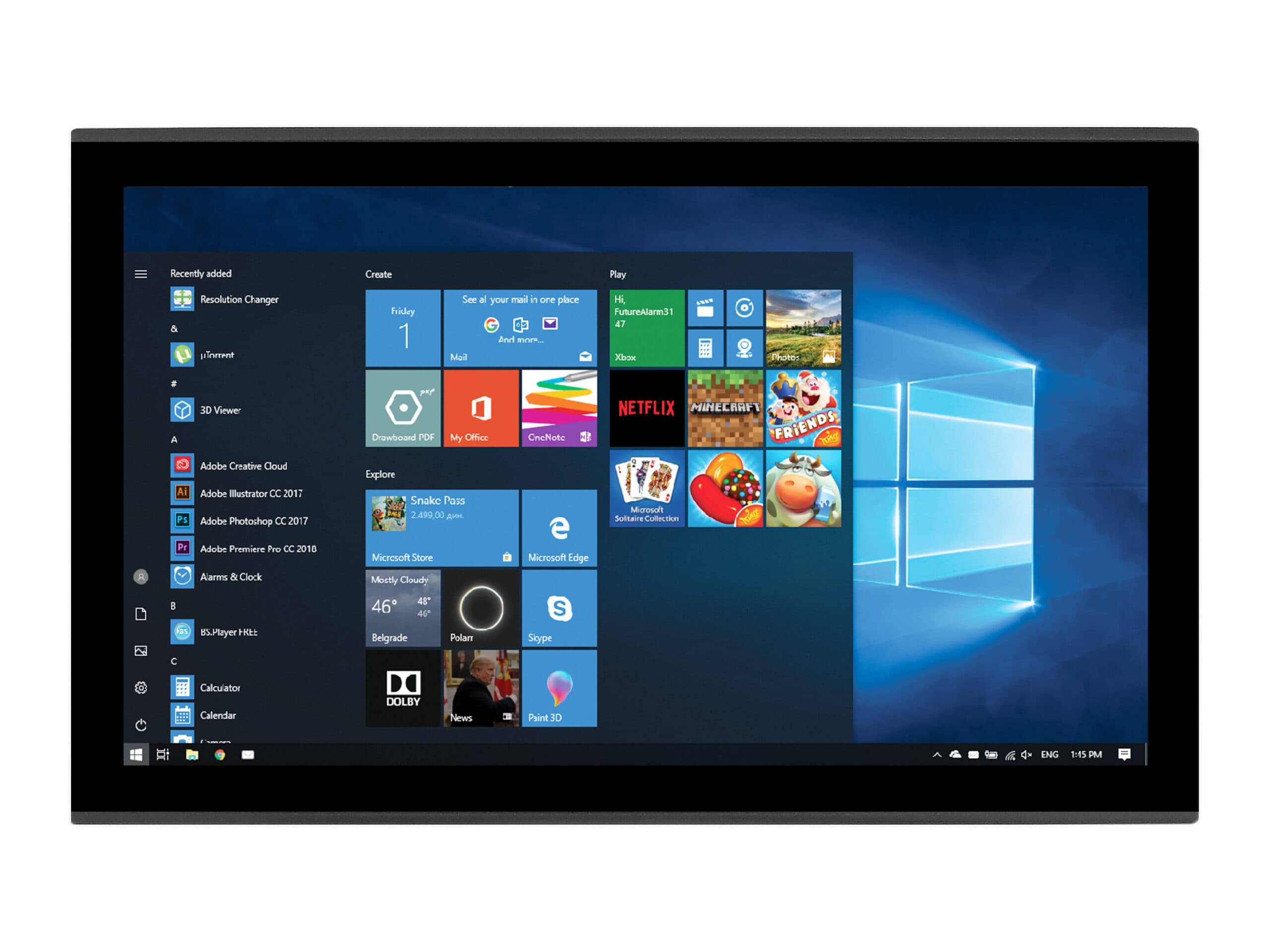

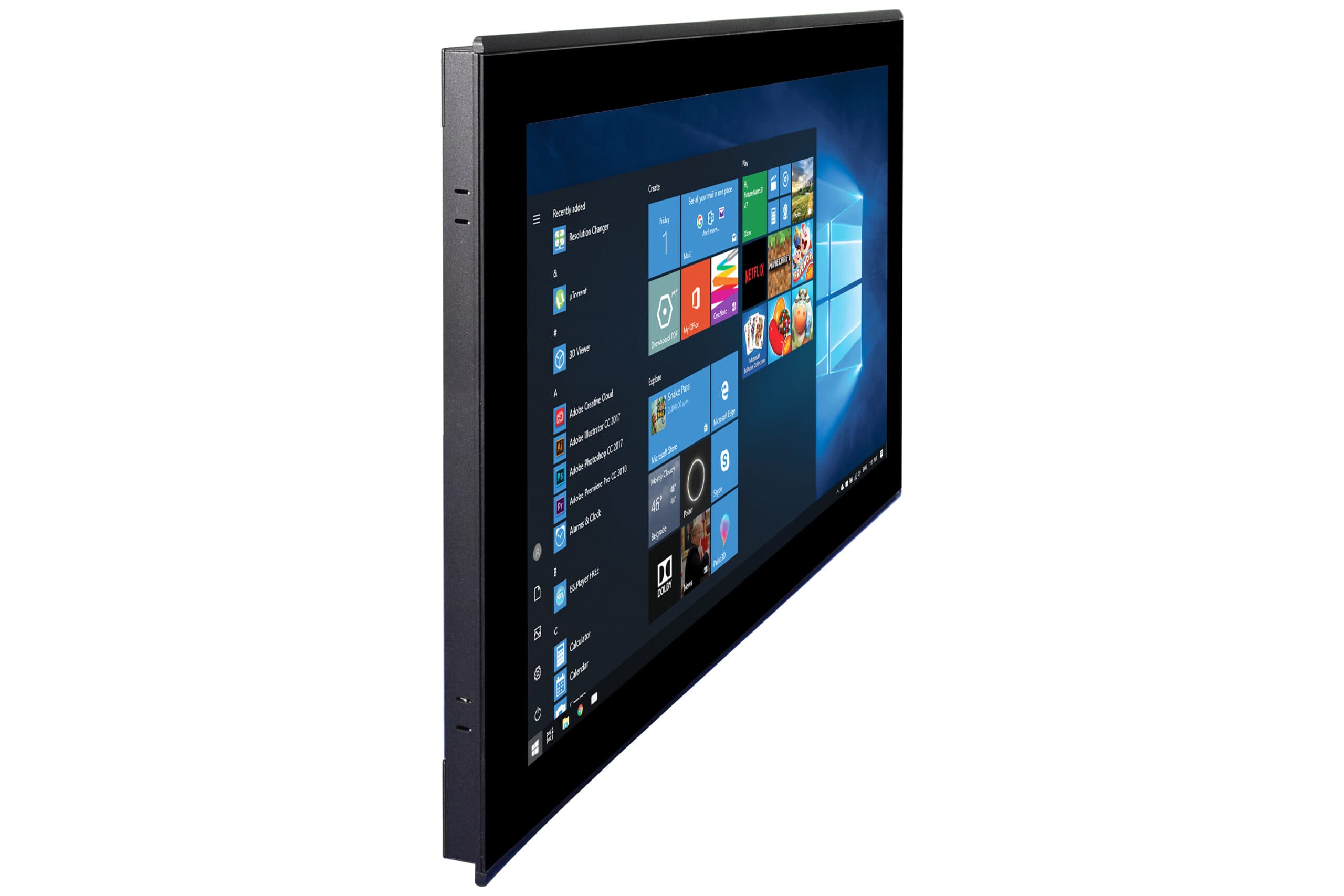

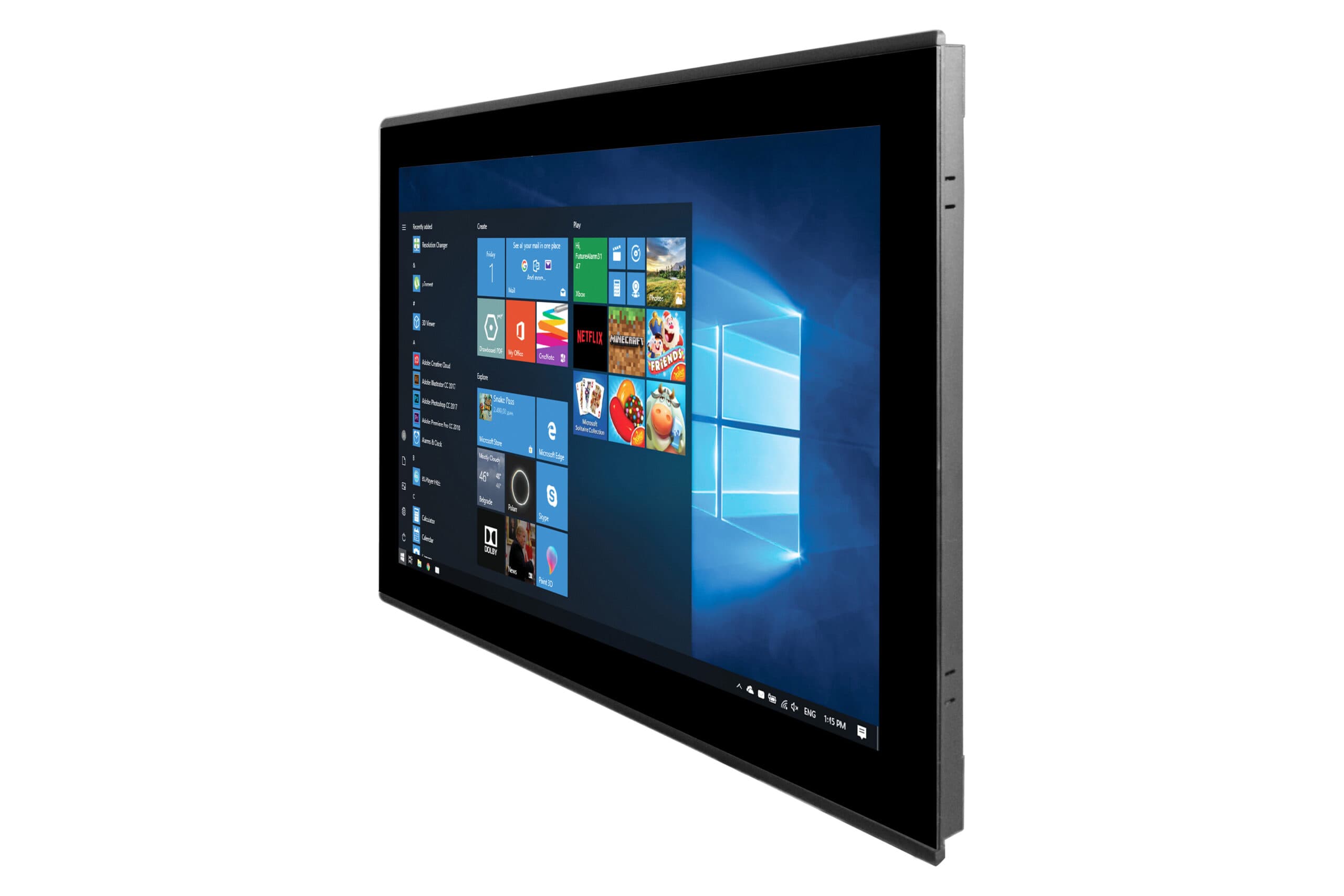

PIM-215-P is a 21.5” industrial display with a 10-point capacitive touchscreen. The 2mm tempered glass cover with a black silk screen ensures that the screen is water and steam-resistant. PIM-215-P supports both VESA and PANEL mounting and can be easily installed onto walls or any flat surface.
Specifications
- SKU
- CS-D215P
- Net weight
- 5500 g
- Display size
- 21.5″
- Display resolution
- 1920*1080
- Input Resolution
- 1920 x 1080 (16:9)
- Brightness
- 300 NIT
- Touch Technology
- Projecting Capacitance (G+G)
- Touch Point
- 10
- Multi Touch Protocol Support
- Based on the operating system of the host PC
- Type of Pen
- Fingers, Hands with Gloves, Conductive Stylus
- Glass
- 2mm Tempered Glass with Black Silk-screen
- Display Color
- 16.7M Colors
- LCD Backlight
- LED
- Viewing Angle
- Horizontal: 170°(min)~178°(typ) / Vertical: 170°(min)~178°(typ)
- Calibration
- No Calibration Tool
- Contrast Ratio
- 1000:1
- Refresh Frequency
- 60Hz
- Response Time
- 14ms
- OSD Control
- Button
- OSD Language
- Multilingual Support

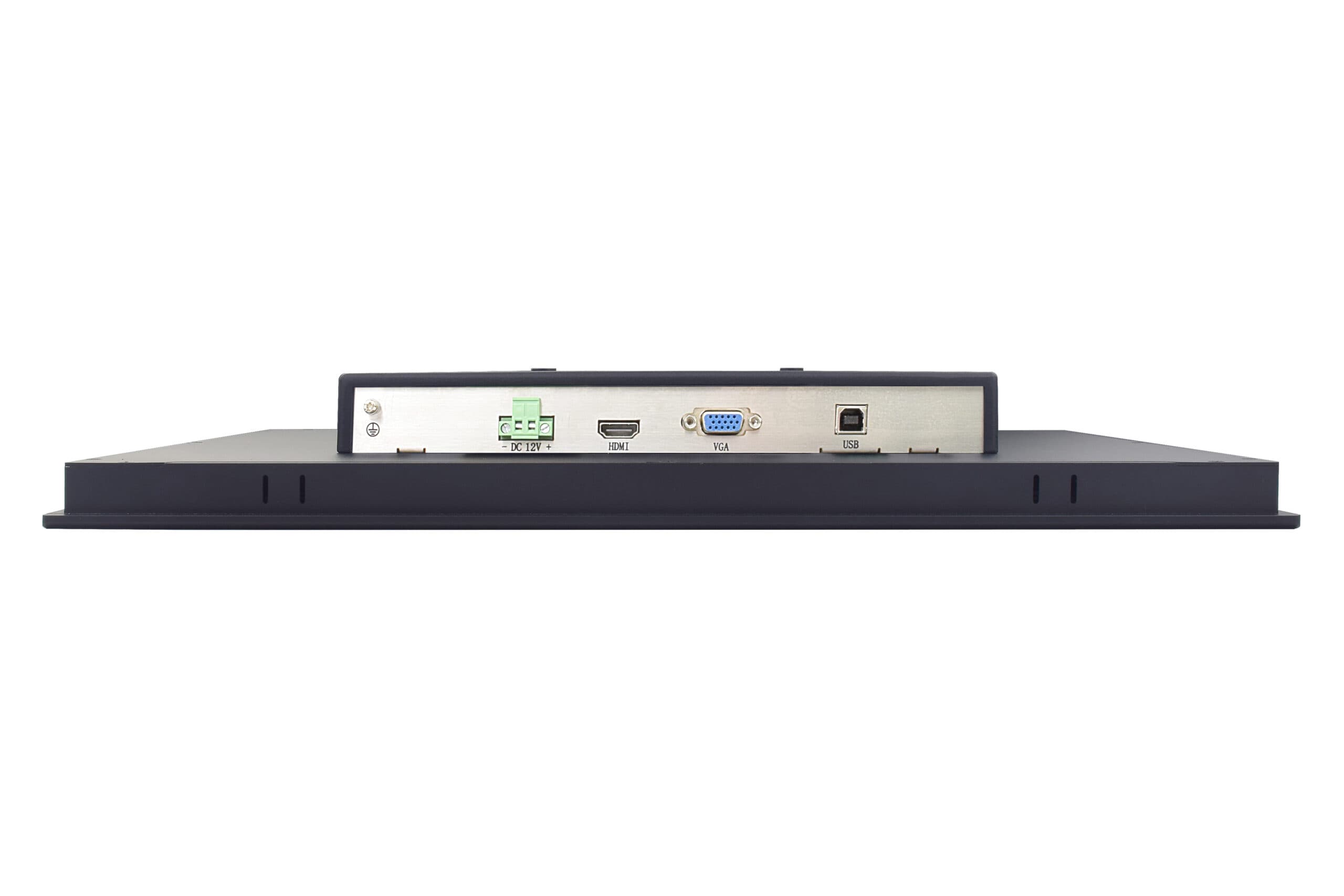

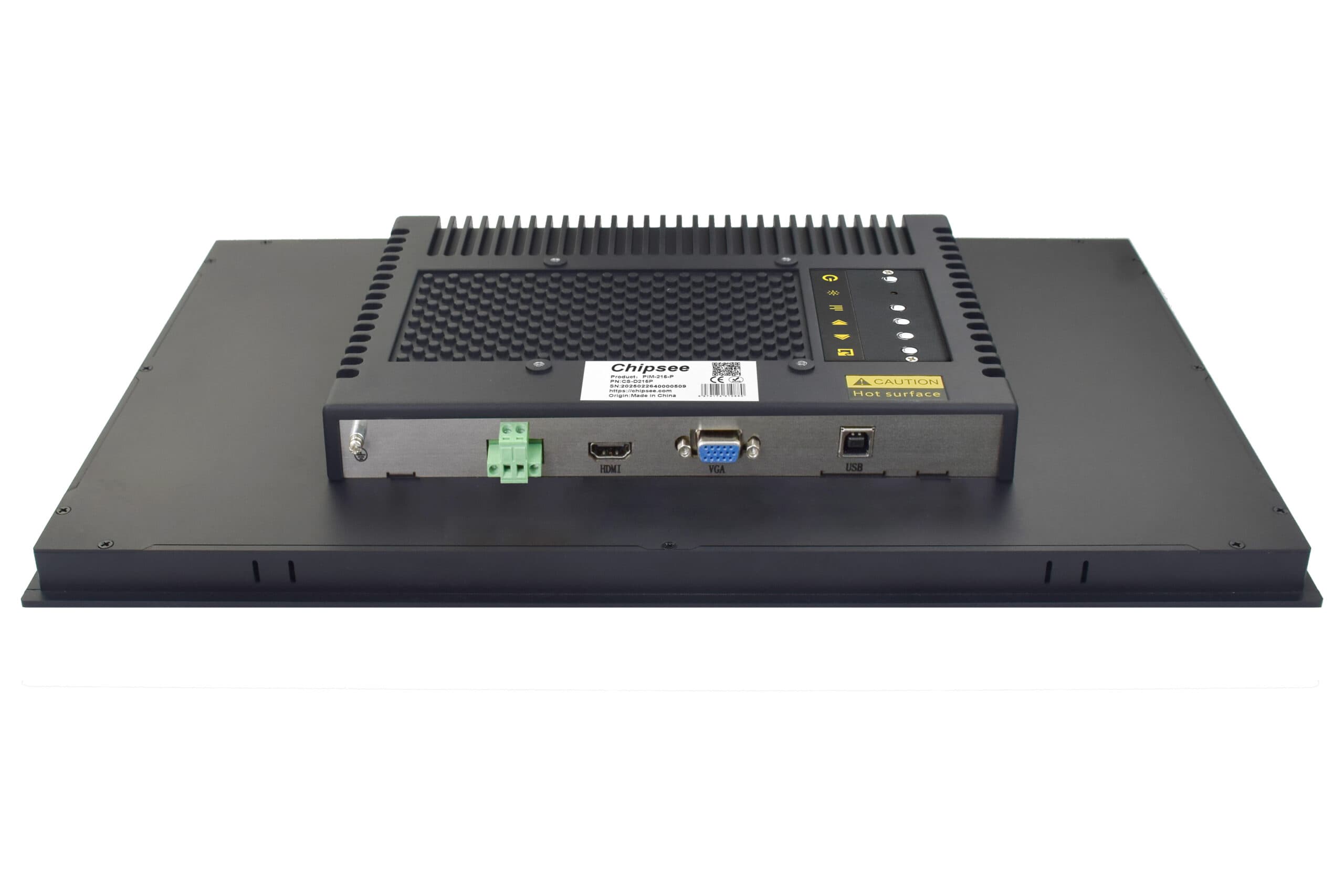

- Connector
- VGA / HDMI
- USB
- 1 x USB 2.0 (Type-B)
- Standby Power
- ≤ 2W (typ.)
- Power Input
- 12V 3A DC (default), 9-30V (optional)
- Power Supply
- ≤ 24W
- Storage Temperature
- -20℃~60℃, 90% RH; (No condensation)
- Working Environment
- (No condensation); 0°C to +50°C, 90% RH
- Waterproof
- Touch surfaces will not be affected by water droplets or steam
- Mounting Method
- VESA, PANEL
- Accessories
- Mounting Clip, HDMI Cable, USB Cable, Power Adapter
