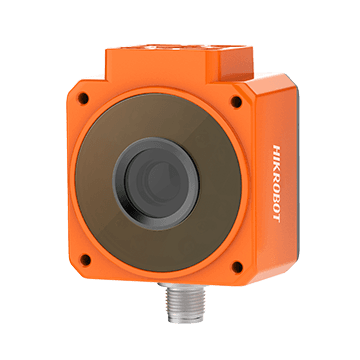

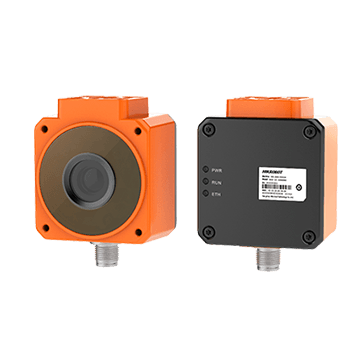

SC2000A AGV Guide Sensor，0.5MP，Mono，M12-2mm focal length，focus 100mm
< 1 MP Serial Smart Cameras — 2.5 mm, Global shutter, CMOS, IP65
Model
- Product Model
- MV-SC2005AM-02WBN
- Type
- SC2000A AGV Guide Sensor，0.5MP，Mono，M12-2mm focal length，focus 100mm
Performance
- Symbologies
- 2-dimensional codes: DM-12, DM-14
- Max. frame rate
- 100 fps
- Max. reading speed
- 100 codes/sec
- Max. running speed
- 3 m/sec (it is the AGV's max. running speed)
- Sensor type
- CMOS, global shutter
- Pixel size
- 4.8 μm × 4.8 μm
- Sensor size
- 1/3.6"
- Sensor size (computed)from resolution × pixel pitch
- 3.84 × 2.88 mm
- Sensor diagonal
- 4.8 mm
- Resolution
- 800 × 600
- Exposure time
- 20 μs to 9000 μs
- Gain
- 1 dB to 330 dB
- Mono/color
- Mono
- Communication protocol
- SmartSDK, UDP, Serial
Electrical feature
- Data interface
- Fast Ethernet (100 Mbit/sec), RS-485
- Digital I/O
- 12-pin M12 connector provides power supply and RS-485 × 1
- Power supply
- 24 VDC
- Max. power consumption
- 18 W@24 VDC (self light source enabled) 3 W@24 VDC (self light source disabled)
Mechanical
- Focal length
- 2.5 mm
- Working distance
- 100 mm ± 5 mm
- Displacement accuracy
- 0.1 mm
- Angle accuracy
- 0.1°
- Field of view
- 93.8°
- Field of view (range)
- 170 mm × 130 mm (it is the field of view under 100 mm ± 5 mm working distance. If the working distance changes, the field of view will vary too.)
- Dimension
- 68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6")
- Weight
- Approx. 200 g (0.4 lb.)
- Ingress protection
- IP65 (with proper installation of waterproof lens cap)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
- Humidity
- 10% to 90% RH, non-condensing
General
- Client software
- IDMVS
- Certification
- CE, RoHS
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
11.5 mm
Magnification: 0.038×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
