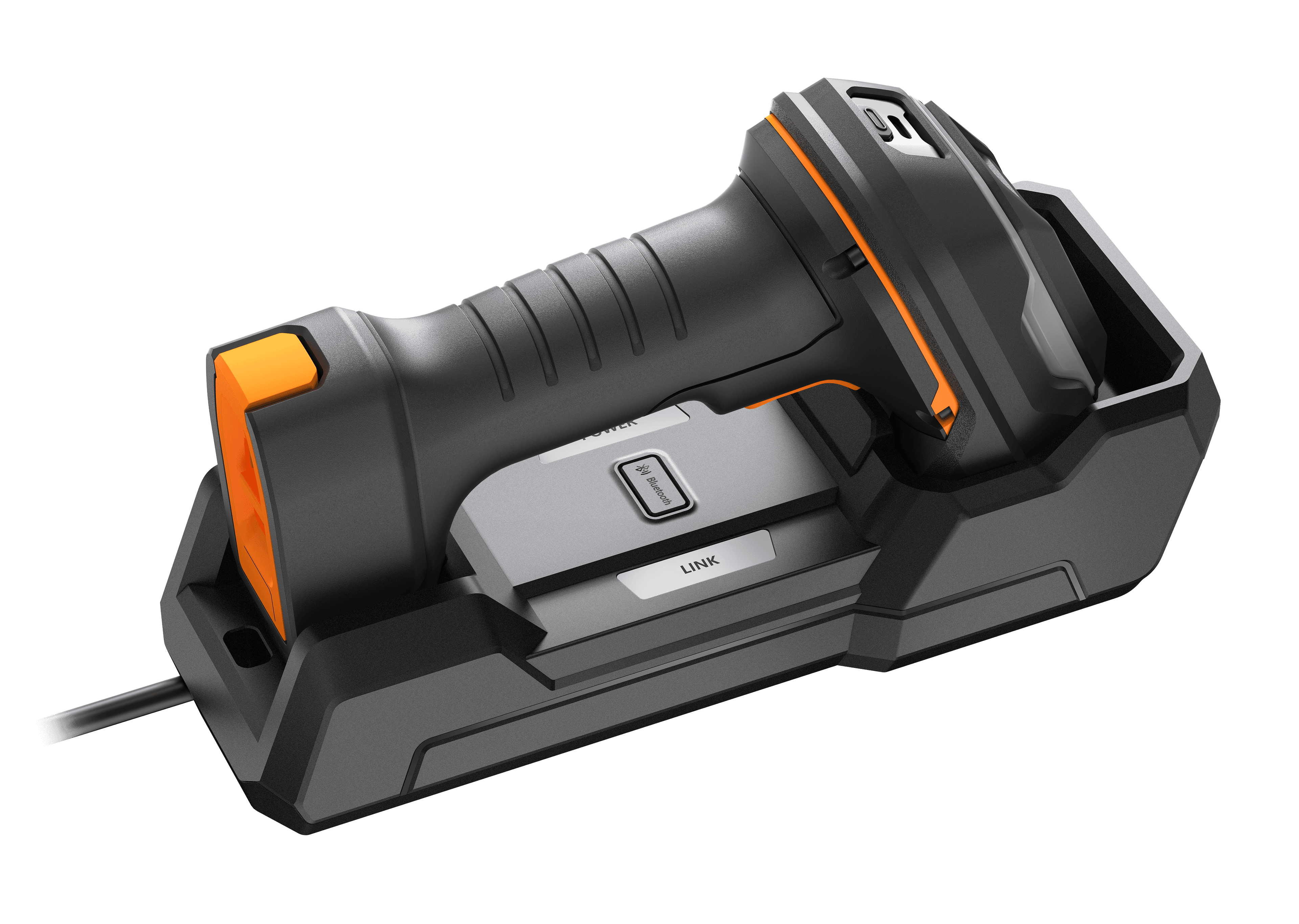

Ultra-ragged Wireless Handheld Code Reader Package

Name: Ultra-ragged Wireless Handheld Code Reader Package
Brand: Hikrobot
SKU: MV-IDH9000B/13HHD/16RP/US

MV-IDH9000B/13HHD/16RP/USHikrobot

1–2 MP Serial Code Readers — CMOS

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec Stacked barcode: PDF417
Min. accuracy: 1.57 mil
Sensor type: CMOS
Resolution: 1280 × 1024
Depth of field: Code128 (3 mil): 0 mm to 100 mm Code 128 (10 mil): 0 mm to 250 mm Code 128 (20 mil): 0 mm to 350 mm Code 39 (5 mil): 0 mm to 150 mm Data Matrix (5 mil): 5 mm to 79 mm QR Code (20 mil): 0 mm to 250 mm
Field of view: Wide-angle lens: horizontal 43.6°, vertical 35.5° Telephoto lens: horizontal 10.4°, vertical 8.3°
Detection angle: Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast: 20%

Battery: 4650 mAh
Charging time: Shutdown mode (0% to 100%): 12 VDC (12 V, 2 A): 6 h; PoE: 6 h; Type-C: 6 h Shutdown mode (7% to 80%): 12 VDC (12 V, 2 A): 3 h; PoE: 3 h
Endurance: 14 h (interval scanning, once in 20 seconds)
Max. current: 1.5 A

Ambient illumination: 0 lux to 100000 lux
Light source: Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED) Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene.
Aiming system: 650 nm laser (red light) + LED (green light)
Prompt: LED indicator, buzzer, vibrator
Display: 0.96" OLED display
Dimension: 74 mm × 109.9 mm × 227.1 mm (2.9" × 4.3" × 8.9")
Ingress protection: IP67
Weight: Approx. 580 g (1.3 lb.)
Temperature: Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity: 5% RH to 95% RH (no condensation)
Drop height: Dropping: 2.5 m, 50 times Rolling: 0.5 m, 20000 times
Chemically resistant: ISO 16750
Static electricity resistant: ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge)

Communication protocol: SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, MELSEC
Data interface: Fast Ethernet (100 Mbit/s)2, RS-232, DC terminal
Power supply: DC terminal: 12 VDC to 24 VDC PoE: 48 VDC
Current consumption: DC terminal: 1.1 A (max.), 0.15 A (during standby) PoE: 0.35 A (max.), 0.1 A (during standby)
Charging time: 6 h
Dimension: 257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7")
Weight: Approx. 380 g (0.8 lb.)
Ingress protection: IP65
Temperature: 5% RH to 95% RH (no condensation)
Humidity: Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
