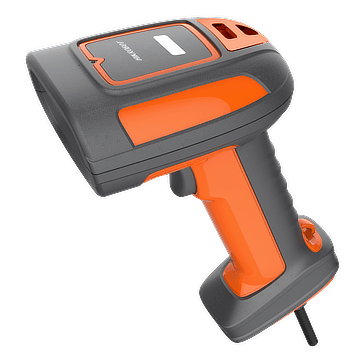

1MP 7mm-NR Lan Industrial Handheld Code Reader

Name: 1MP 7mm-NR Lan Industrial Handheld Code Reader
Brand: Hikrobot
SKU: MV-IDH7000P/10NR/07RN/L

MV-IDH7000P/10NR/07RN/LHikrobot

1–2 MP Serial Code Readers — 6.7 mm, CMOS, IP65

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417
Min. accuracy: 3 mil
Sensor type: CMOS
Resolution: 1280 × 800
Depth of field: Code 39 (3 mil): 15 mm to 60 mm Code 39 (5 mil): 5 mm to 80 mm Data Matrix (5 mil): 10 mm to 70 mm Data Matrix (10 mil): 0 mm to 110 mm1 QR Code (5 mil): 10 mm to 70 mm
Field of view: Horizontal 31°, vertical 20°
Detection angle: Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast: 20%
Communication protocol: SmartSDK, TCP Client, TCP Server, FTP, Profinet, Ethernet/IP, Modbus, UDP, Serial, FINS, Melsec/SLMP

Focal length: 6.7 mm
Ambient illumination: 0 lux to 100000 lux
Light source: Direct lighting: white LED Diffused reflection lighting: red LED
Aiming system: Cross laser aiming
Dimension: 73.4 mm × 104 mm × 229.5 mm (2.9" × 4.1" × 9.0")
Weight: Approx. 460 g (1.0 lb.)
Ingress protection: IP65
Temperature: Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity: 20% RH to 95% RH (no condensation)
Drop height: 2.0 m
