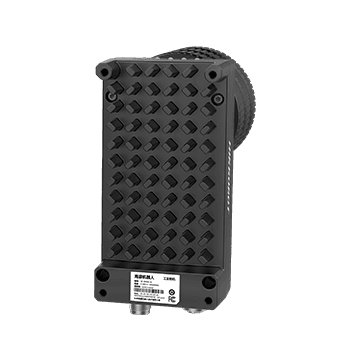

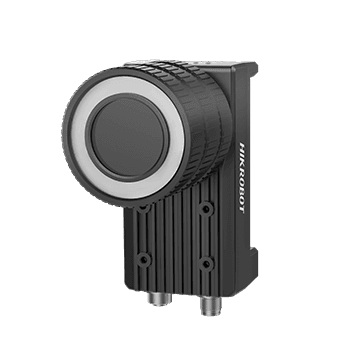

12MP Logistic Code Reader
Image-based high-resolution barcode reader ID6000 is specialized for the logistics industry. ID6000 has especially developed in algorithm development to cope with various complex logistics code reading application scenarios. Based on high-performance multi-core deep learning processor, ID6000 series has specially optimized decoding algorithm and high decoding frames rate. It can identify complex codes in common environment such as stained, defective and poorly printing codes. ID6000 series can be matched with various types of external integrated light sources, combined with high-performance decoding algorithms, to achieve a super-large depth of field effect of over 700mm, can cover packages under 700mm through 1 camera.
Model
- Product Model
- MV-ID6120PM-00C-NNG
- Type
- 12MP Logistic Code Reader
Performance
- Symbologies
- 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2D codes: QR Code, Data Matrix
- Max. frame rate
- 28 fps
- Max. reading speed
- 84 codes/sec
- Sensor type
- CMOS, global shutter
- Pixel size
- 3.45 μm × 3.45 μm;3.2 μm × 3.2 μm
- Sensor size
- 1.1";1"
- Resolution
- 4096 × 3072
- Exposure time
- 16 μs to 1 sec
- Gain
- 0 dB to 37 dB;0 dB to 40 dB
- Mono/color
- Mono
- Communication protocol
- SmartSDK, TCP Client, TCP Server, Serial, FTP
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s)
- Digital I/O
- 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
- Power supply
- 12 VDC to 24 VDC
- Max. power consumption
- 17 W @ 24 VDC
Mechanical
- Lens mount
- C-mount
- Light source
- Not included
- Lens cap
- Included
- Dimension
- 126 mm × 66 mm ×113.2 mm (5.0" × 2.6" × 4.5")
- Weight
- Approx. 750 g (1.7 lb.)
- Ingress protection
- IP67 ( under proper installation of waterproof lens cap)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- IDMVS
- Certification
- CE, RoHS
Firmware
