Vision Components — PCI-E gen2 × 8
Model
- Product Model
- MV-GX1008
- Type

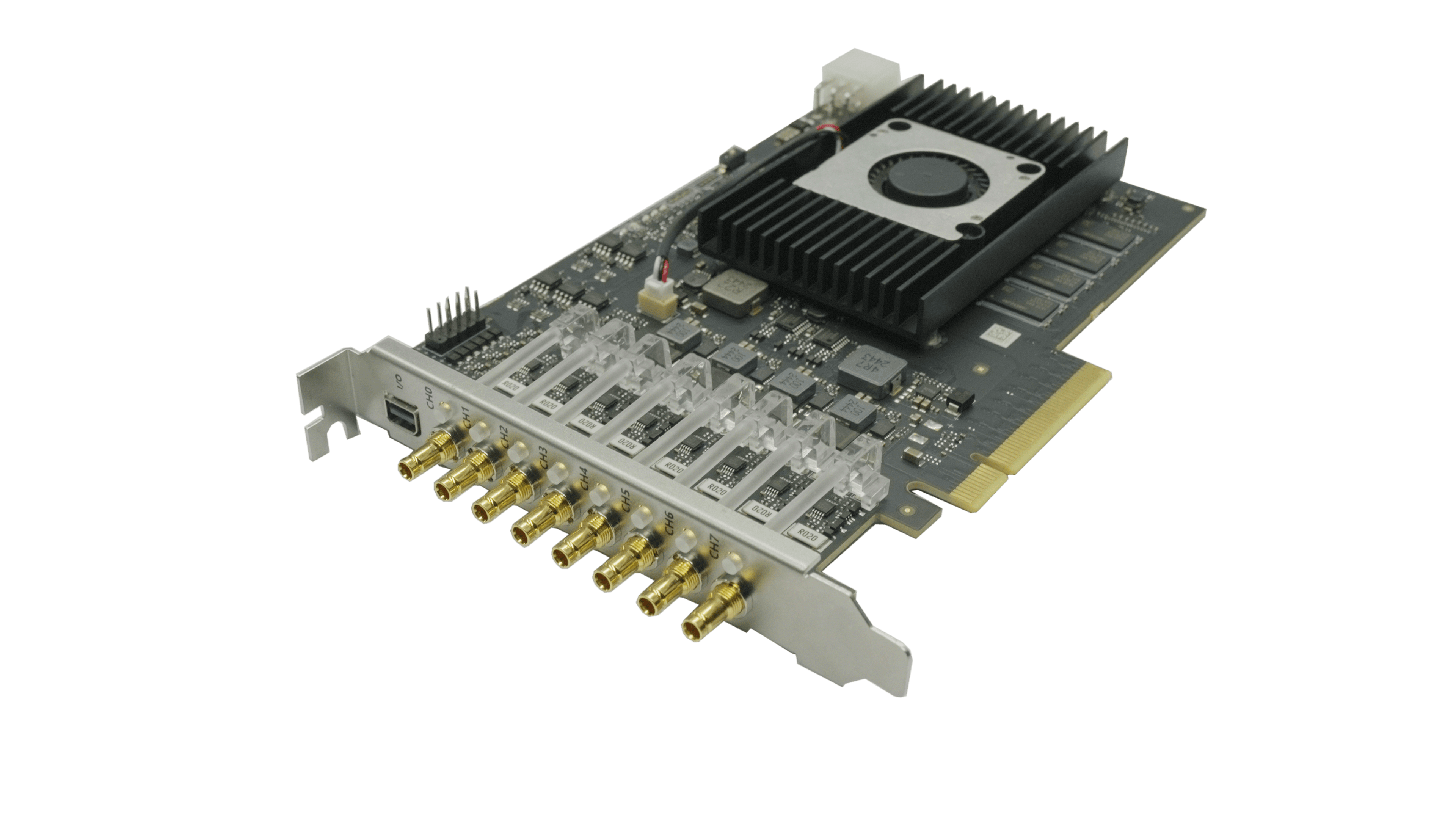

- Octo CXP-6 Frame Grabber
Memory
- On-board memory
- 2 GB DDR3-RAM
Host interface
- Interconnect
- PCI-E gen2 × 8
- Delivery bandwidth
- 3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth)
- Bus indicator
- 1
Camera interface
- Standard
- CoaXPress 1.0/1.1
- Interface
- DIN 1.0/2.3 × 2
- Power output
- PoCXP, each channel provides 13 W @ 24 VDC at most
- Camera type supported
- CXP-6 connector industrial camera
- Camera quantity supported
- 2 at most
- Camera connection speed
- 1.25/2.5/3.125/5/6.25 Gbps (CXP-1/2/3/5/6)
- Stream
- 2
- Stream indicator
- 2
Processing feature
- Pixel format
- Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8
GPIO
- I/O Type
- Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4
- Connector
- HD26 female header
Electrical feature
- Power consumption
- Typ. 13.7 W (without PoCXP)
Mechanical
- Dimension
- 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
- Temperature
- Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Client software
- MVS
- Operating system
- Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux
- Certification
- RoHS, CE, KC
