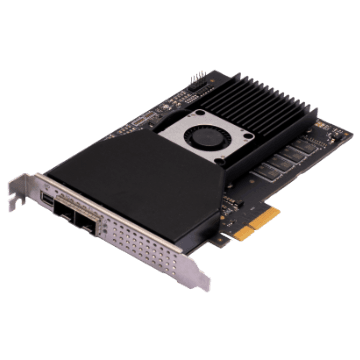

XoF SFP+ Frame Grabbers V3.0，2 ports
MV-GS1002FV3.0Hikrobot
Vision Components — PCI-E gen3 × 4
Model
- Product Model
- MV-GS1002F V3.0
- Type
- XoF SFP+ Frame Grabbers V3.0，2 ports
Memory
- On-board memory
- 2 GB DDR4
Host interface
- Interconnect
- PCI-E gen3 × 4
- Delivery bandwidth
- 4000 MB/s (max. transmission bandwidth) 3200 MB/s (sustained transmission bandwidth)
- Bus indicator
- 1
Camera interface
- Standard
- XoFLink
- SFP+ module
- SFP+ × 2
- Data interface
- 2LC fiber port
- Camera quantity supported
- 1/2
- Camera connection speed
- 10 Gbps for single port, 20 Gbps in total
- Stream
- 2 at most
- Stream indicator
- 2 pairs
GPIO
- I/O Type
- Provides 11 configurable I/O connectors, compatible with single-ended/differential signals, and supports cascading of multiple frame grabbers. I/O on bracket: Line 0 to Line 7 supports input (3.3 V to 24 V) and output (max. 24 V) I/O on PCB: Line 8 to Line 10 supports input (3.3 V to 12 V) and output (3.3 V)
- Connector
- Connector of I/O on bracket: 20-pin MiniDP female connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole)
Electrical feature
- Power consumption
- Typ. 9.8 W
Mechanical
- Dimension
- 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
- Temperature
- Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Client software
- MVS
- Operating system
- Windows 7/10/11, Ubuntu 16.04 to 22.04 on Linux
- Certification
- CE, KC, RoHS
