Vision Components — PCI-E gen2 × 4
Model
- Product Model
- MV-GE1004
- Type

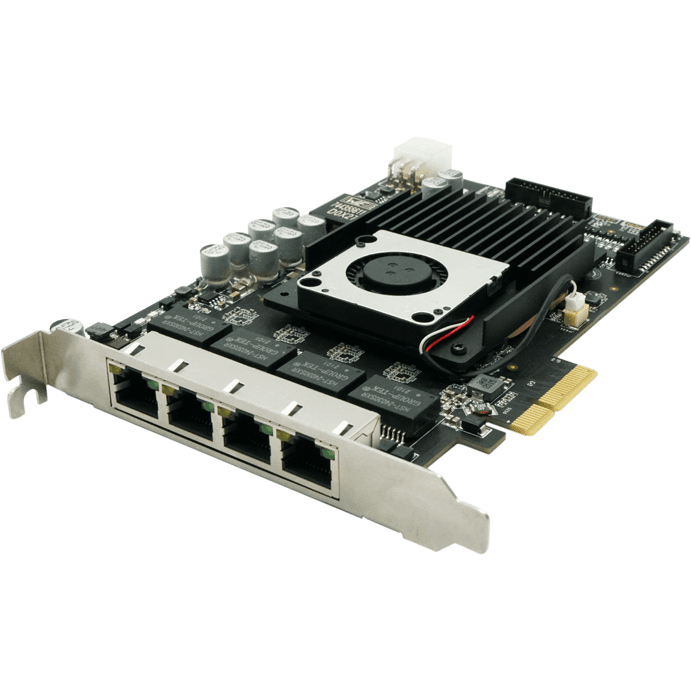

- Quad GigE Frame Grabber
Memory
- On-board memory
- 1 GB DDR3-RAM
Host interface
- Interconnect
- PCI-E gen2 × 4
- Delivery bandwidth
- 1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth)
- Indicator
- 1
Camera interface
- Standard
- GigE Vision
- Interface
- RJ45 × 4
- Power output
- PoE, each channel provides 15 W at most (ATX 6-pin power required for PoE)
- Camera type supported
- GigE industrial camera
- Camera quantity supported
- 4 at most
- Camera connection speed
- 1 Gbps
- Stream
- 4
- Stream indicator
- 4 pairs
Processing feature
- Pixel format
- Mono 8/10/10p/12/12p Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
GPIO
- I/O Type
- Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4
- Connector
- Female header
Electrical feature
- Power consumption
- Typ. 10 W (without PoE)
Mechanical
- Dimension
- 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
- Temperature
- Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Client software
- MVS
- Operating system
- Windows 7/10/11, Ubuntu 16.04 to 20.04 on Linux
- Certification
- WEEE, RoHS, REACH
