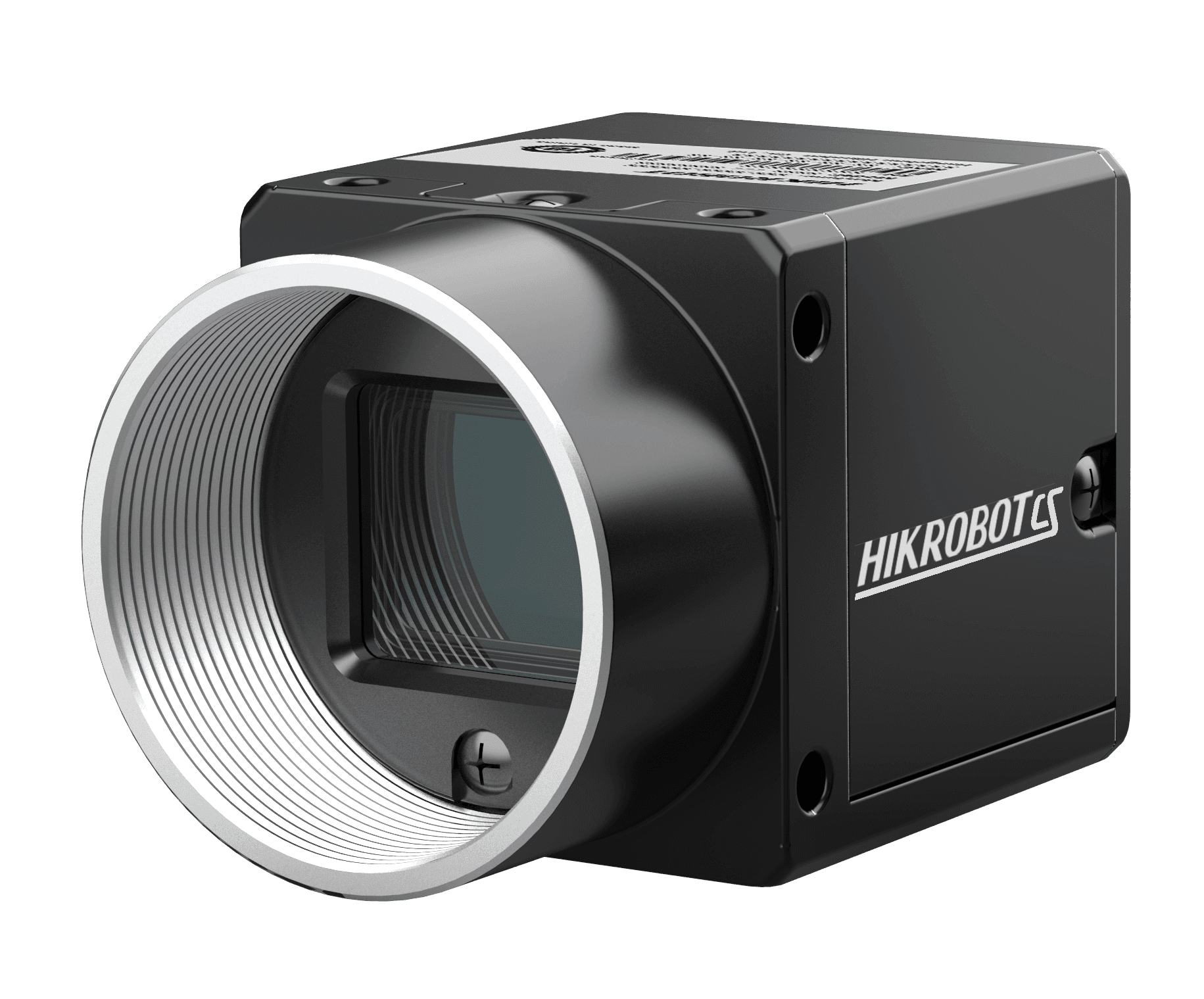

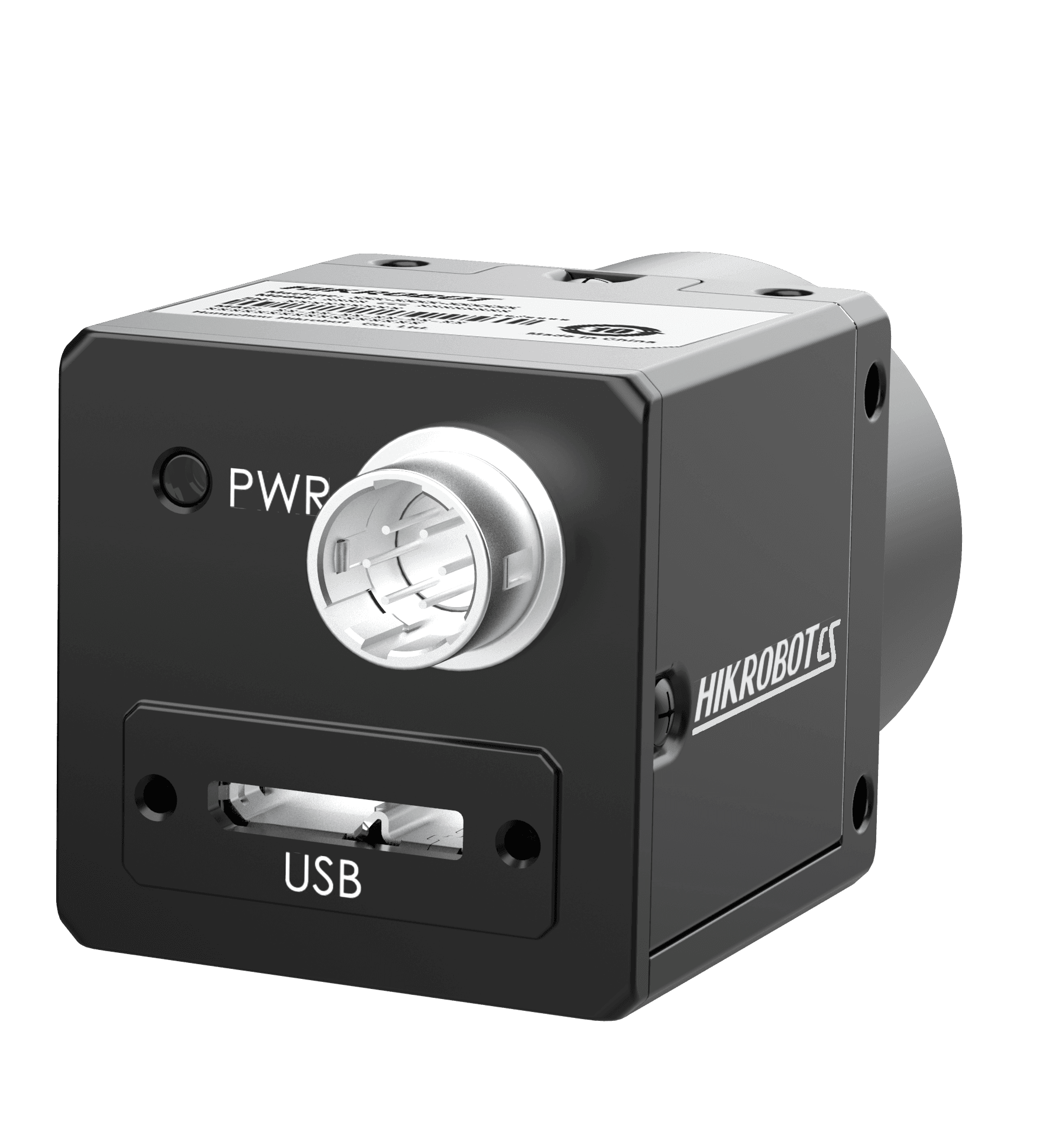

1.3MP Area Scan Camera, USB3.0, SS, 2nd Gen., Color
1–2 MP USB3 Area Scan Cameras — Global shutter, CMOS, C-mount, IP40
Model
- Product Model
- MV-CS013-80UC
- Type
- 1.3MP Area Scan Camera, USB3.0, SS, 2nd Gen., Color
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- SS
- Pixel size
- 4.0 μm × 4.0 μm
- Sensor size
- 1/2.7"
- Sensor size (computed)from resolution × pixel pitch
- 5.12 × 4.1 mm
- Sensor diagonal
- 6.56 mm
- Resolution
- 1280 × 1024
- Max. frame rate
- 240.4 fps @ 1280 × 1024 Mono 8
- Dynamic range
- 57 dB
- SNR
- 38 dB
- Gain
- 0 dB to 20 dB
- Exposure time
- 30 μs to 1 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono/color
- Mono
- Pixel format
- Mono 8/10/10Packed/12/12Packed
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- USB3.0, compatible with USB2.0
- Digital I/O
- 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC, supports USB power supply
- Power consumption
- Typ. 1.3 W @ 5 VDC (USB3.0 provides power supply)
Mechanical
- Lens mount
- C-mount
- Dimension
- 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
- Weight
- Approx. 80 g (0.2 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with USB3 Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- USB3 Vision, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
15.4 mm
Magnification: 0.051×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 6.56 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
