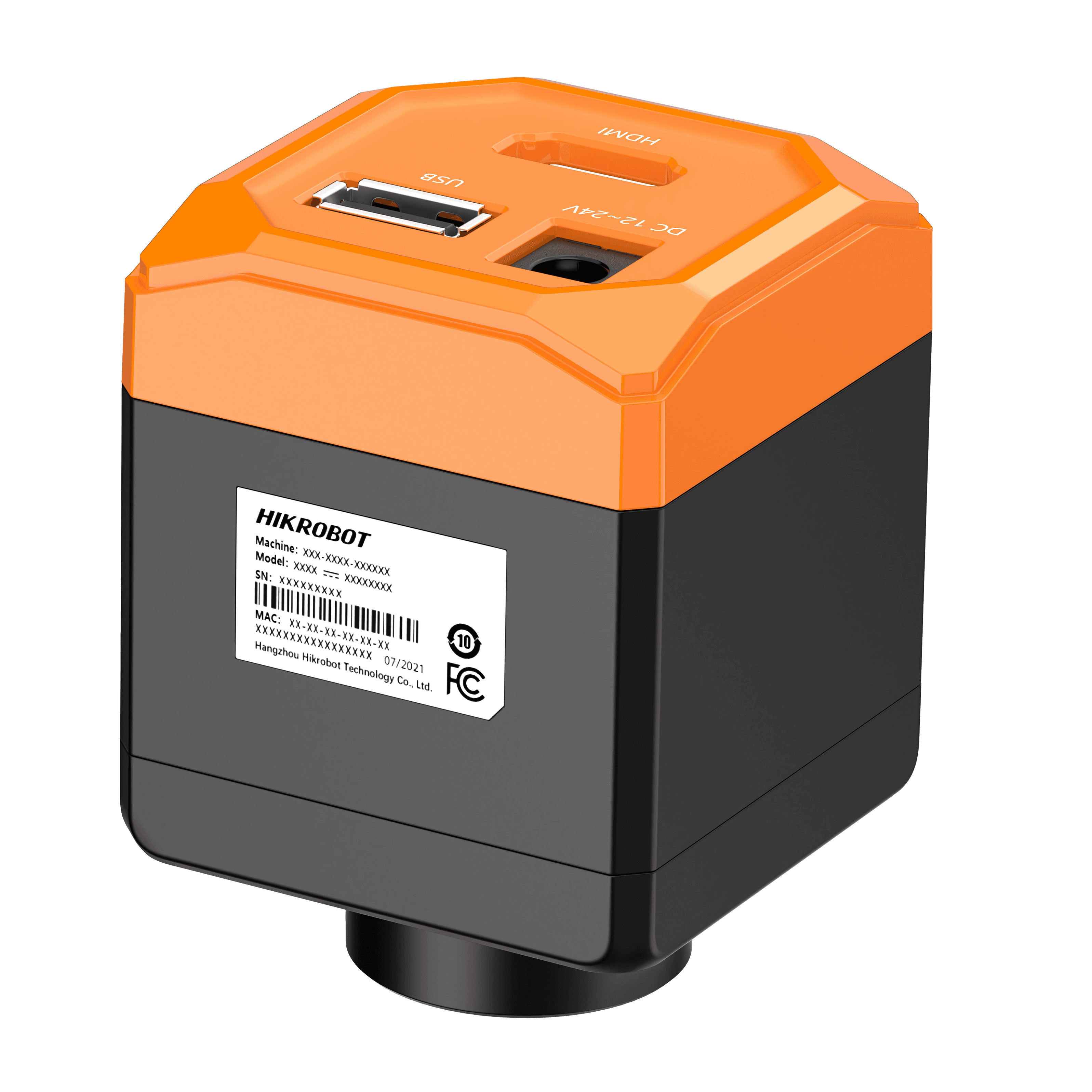

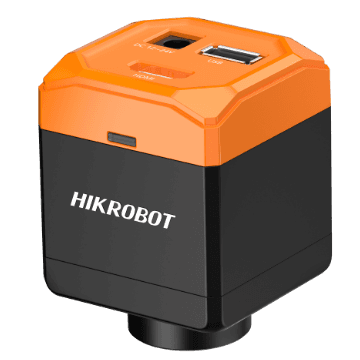

2MP HDMI Camera

Name: 2MP HDMI Camera
Brand: Hikrobot
SKU: MV-CM2020C-0H

MV-CM2020C-0HHikrobotRolling shutter →

Request a quote Datasheet PDF Manual CAD drawing

2–5 MP Area Scan Cameras — Rolling shutter, CMOS, < 10 W, C-mount

Model

Product Model: MV-CM2020C-0H
Type: 2MP HDMI Camera

Performance

Sensor type: CMOS, rolling shutter
Pixel size: 3.75 μm × 3.75 μm
Sensor size: 1/2"
Sensor size (computed)from resolution × pixel pitch: 7.2 × 4.05 mm
Sensor diagonal: 8.26 mm
Resolution: 1920 × 1080
Max. frame rate: 60 fps
Gain: 0 dB to 42 dB
Exposure time: 300 μs to 100 ms
Mono/color: Color
Exposure mode: Auto/manual
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Transmission interface: HDMI
Control interface: USB 2.0
Power supply: 12 VDC to 24 VDC, independent power supply required
Power: Typ. 1.9 W @ 12 VDC

Mechanical

Lens mount: C-mount
Dimension: 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2")
Weight: 220 g (0.5 lb.)
Ingress protection: IP30 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Certification: CE, RoHS

Firmware

MV_CM2020C_0H_EN_STD_V1.0.1_260608_HIKROBOT.zip →

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

21.6 mm

Magnification: 0.072×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Lenses that fit this camera

Filtered by the C-mount thread and by coverage — the image circle is at least 8.26 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
