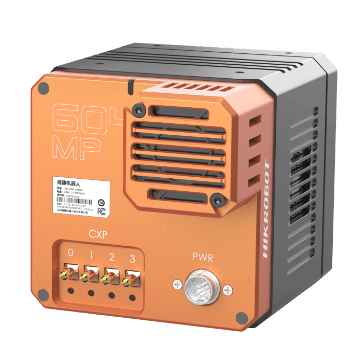

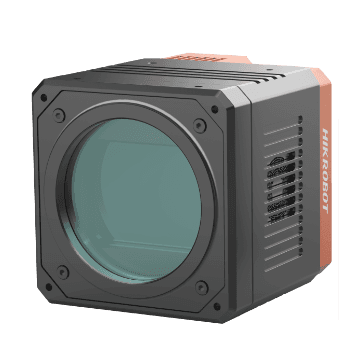

604MP Area Scan Camera, CXP-6, Mono
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress. Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage. Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Model
- Product Model
- MV-CH6040-10XM-M72-NF
- Type
- 604MP Area Scan Camera, CXP-6, Mono
Performance
- Sensor type
- CMOS, rolling shutter
- Sensor model
- Sony® IMX411
- Pixel size
- 3.76 μm × 3.76 μm
- Sensor size
- 66.7 mm
- Sensor size (computed)from resolution × pixel pitch
- 106.84 × 80.01 mm
- Sensor diagonal
- 133.48 mm
- Resolution
- 28416 × 21280
- Max. frame rate
- 1.45 fps @ 28416 × 21280 Mono 8
- Dynamic range
- 78.7 dB
- SNR
- 46.4 dB
- Gain
- 0 dB to 40 dB
- Exposure time
- 15 μs to 1 sec
- Exposure mode
- Off/Once/Continuous exposure mode, supports Rolling and Global Reset
- Mono/color
- Mono
- Pixel format
- Mono 8/10/12/16
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Decimation
- Not supported
- Reverse image
- Supports horizontal reverse image output
Electrical feature
- Data interface
- CoaXPress with DIN interface
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
- Power supply
- 24 VDC
- Power consumption
- Typ. 15 W @ 24 VDC
Mechanical
- Lens mount
- M72*0.75, back focal length 19.55 mm
- Dimension
- 100 mm × 100 mm × 128.5 mm (3.9" × 3.9" × 5.1")
- Weight
- Approx. 1.4 kg (3.1 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Performance temperature: 20 °C to 35 °C (68 °F to 95 °F) Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- Frame grabber software meeting with CoaXPress Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
- Compatibility
- CoaXPress, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
