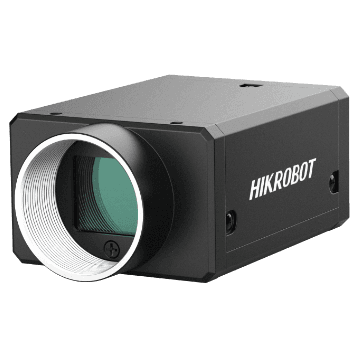

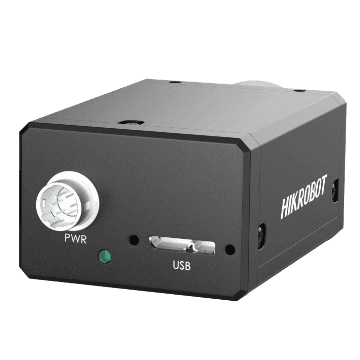

25MP Area Scan Camera, USB3, Mono
> 25 MP USB3 Area Scan Cameras — Rolling shutter, CMOS, C-mount, IP40
Model
- Product Model
- MV-CH250-60UM
- Type
- 25MP Area Scan Camera, USB3, Mono
Performance
- Sensor type
- CMOS, rolling shutter
- Sensor model
- Stacked BSI
- Pixel size
- 2.5 μm × 2.5 μm
- Sensor size
- 12.6 mm × 12.6 mm
- Sensor size (computed)from resolution × pixel pitch
- 12.8 × 12.8 mm
- Sensor diagonal
- 18.1 mm
- Resolution
- 5120 × 5120
- Max. frame rate
- 14.8 fps @ 5120 × 5120 Mono 8
- Dynamic range
- 69.3 dB
- SNR
- 39.9 dB
- Gain
- 0 dB to 24 dB
- Exposure time
- 58 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode, support Global Reset and Trigger Rolling.
- Mono/color
- Mono
- Pixel format
- Mono 8/10/10Packed/12/12Packed
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- USB3.0, compatible with USB2.0
- Digital I/O
- 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC, supports USB power supply
- Power consumption
- Typ. 5.5 W @ 5 VDC (USB3.0 provides power supply)
Mechanical
- Lens mount
- C-mount
- Dimension
- 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
- Weight
- Approx. 103.8 g (0.2 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with USB3.0 Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- USB3 Vision, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
38.4 mm
Magnification: 0.13×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 18.1 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
MVL-KF1224M-25MP
12mm, F2.4, 1.2", 25MP Lens, C-Mount
SA1220M-10MP
12mm, F2.0, 4/3", 10MP Lens, C-Mount
MVL-KF1624M-25MP
16mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF1640-25MP
16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
SA1620M-10MP
16mm, F2.0, 4/3", 10MP Lens, C-Mount
MVL-KF2524M-25MP
25mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF2540-25MP
25mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
SA2520M-10MP
25mm, F2.0, 4/3", 10MP Lens, C-Mount
MVL-KF3524M-25MP
35mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF3540-25MP
35mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
SA3520M-10MP
35mm, F2.0, 4/3", 10MP Lens, C-Mount
MVL-KF5024M-25MP
50mm, F2.4, 1.2", 25MP Lens, C-Mount
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
