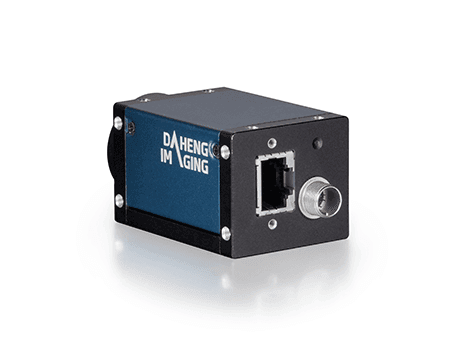

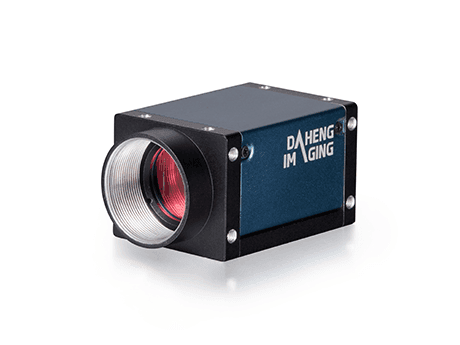

ME2P-1230-9GC-P
The MERCURY2 PRO PoE series (ME2P-G-P) camera is DAHENG IMAGING’s large sensor industrial digital camera, featuring outstanding performance, compact design and flexible installation. ME2P-1230-9GM/C-P is a monochrome/color GigE Vision camera with the Sony IMX304 CMOS sensor. The ME2P-1230-9GM/C-P cameras has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for ME2P-G-P. Thanks to the extremely compact design (36mm × 31mm × 50.6mm), locking screw connectors, the MERCURY2 PRO PoE series cameras can secure the reliability of cameras deployed in harsh environments. Featuring compact design, outstanding performance, ease of installation and use, the MERCURY2 PRO cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Specifications
- Model
- ME2P-1230-9GC-P
- Product Families
- MERCURY2 Plus
- Resolution
- 4096×3000
- Frame Rate (fps)
- 9
- Sensor Manufacturer
- Sony
- Sensor
- 1.1" IMX304 Global shutter CMOS
- Pixel Size
- 3.45μm
- Sensor size (computed)from resolution × pixel pitch
- 14.13 × 10.35 mm
- Sensor diagonal
- 17.52 mm
- Pixel Bit Depth
- 8 bit，12 bit
- Data Interface
- GigE
- Lens Mount
- C，CS
- Spectrum
- Color
- Pixel Formats
- Bayer RG8，Bayer RG12
- Signal Noise Ratio
- 40.48 dB
- Exposure Time
- UltraShort: 1μs~100μs, Actual Steps: 1μs; Standard: 36μs~1s, Actual Steps: 1 row period
- Gain
- 0dB~24dB, Default: 0dB, Steps: 0.1dB
- Binning
- 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
- Decimation
- FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
- Reverse X/Y
- Reverse X/Y
- I/O Interface
- 1 input and 1 output with opto-isolated, 2 programmable GPIOs
- Power Requirement
- 12 ~ 24 VDC or PoE
- Power Consumption
- 2.82 W @ 12 VDC；3.04 W @ PoE
- Operating Temp.
- 0°C ~ +45°C
- Storage Temp.
- -20°C ~ +70°C
- Operating Humidity
- 10% ~ 80%
- Dimensions (W×H×L)
- 36 mm × 31 mm × 50.6 mm (w/o connectors)
- Weight
- 75 g
- Conformity
- CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
MV-ACG-RJ45s(up)-RJ45-HF-15m
MV-ACG-RJ45s(up)-RJ45-ST-15m
MV-ACG-RJ45s-RJ45-HF-10m
MV-ACG-RJ45s-RJ45-SF-10m
MV-ACG-RJ45s-RJ45-ST-10m
MV-ACG-RJ45s(up)-RJ45-HF-3m
MV-ACG-RJ45s(up)-RJ45-ST-3m
MV-ACG-RJ45s-RJ45-HF-15m
MV-ACG-RJ45s-RJ45-SF-15m
MV-ACG-RJ45s-RJ45-ST-15m
MV-ACG-RJ45s(up)-RJ45-HF-5m
