The MARS 5GigE series (MARS-G5-P) camera is DAHENG IMAGING’s high bandwidth industrial digital camera, featuring high resolution, high definition and low noise. MARS-1231-46G5M/C-P is a monochrome/color GigE Vision camera with the Sony IMX253 CMOS sensor. The MARS-1231-46G5M/C-P camera is capable of 5Gbit/s maximum transfer data rate, can be powered over Ethernet and has opto-isolated I/Os that adapt to specific needs. Thanks to the locking screw connectors, the MARS series cameras can secure the reliability of cameras deployed in harsh environments. Featuring compact design, outstanding performance, ease of installation and use, the MARS cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Specifications

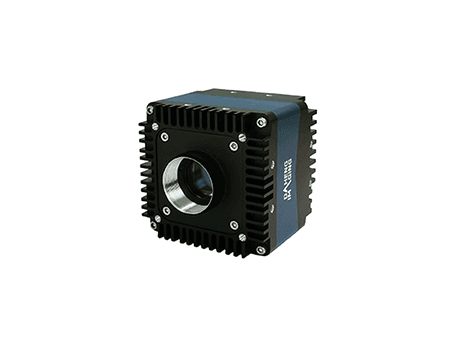

- Model
- MARS-420-238U3DM
- Product Families
- MARS
- Resolution
- 2048 × 2048
- Frame Rate (fps)
- 238
- Sensor Manufacturer
- Gpixel
- Sensor
- SCMOS
- Pixel Size
- 6.5μm
- Sensor size (computed)from resolution × pixel pitch
- 13.31 × 13.31 mm
- Sensor diagonal
- 18.83 mm
- Pixel Bit Depth
- 8bit, 12bit, 16bit
- Data Interface
- USB3.2
- Lens Mount
- C，M42
- Spectrum
- Mono
- Pixel Formats
- Mono8/Mono12/Mono12p@HighSpeed, Mono12/Mono12p@HighSensitivity, Mono16@HighDynamicRange
- Signal Noise Ratio
- 41.56dB@HighDynamicRange, 30.29dB@HighSpeed, 30.06dB@HighSensitivity
- Dynamic Range
- 70.94dB@HighDynamicRange, 57.32dB@HighSpeed, 57.32dB@HighSensitivity
- Exposure Time
- Standard: 20μs~0.5s
- Gain
- AnalogAll：10.5dB / 13.5dB, DigitalAll：0dB ~ 24dB
- Binning
- FPGA：1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4
- Reverse X/Y
- Reverse X/Y
- I/O Interface
- 1 input and 1 output with opto-isolated, 1 bidirectional GPIO
- Power Requirement
- 12VDC-10% ~ 24VDC+10%
- Power Consumption
- 7.3W @ 12VDC
- Operating Temp.
- 0° C ~ +45° C
- Storage Temp.
- 19° C ~ +25° C
- Operating Humidity
- 10% ~ 60%
- Dimensions (W×H×L)
- 65mm × 65mm × 62.55mm
- Weight
- 369 g
- Conformity
- CE，RoHS，FCC，ICES，UKCA，USB3 Vision®，GenICam®
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 18.83 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
12mm, F2.4, 1.2", 25MP Lens, C-Mount
12mm, F2.0, 4/3", 10MP Lens, C-Mount
16mm, F2.4, 1.2", 25MP Lens, C-Mount
16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
16mm, F2.0, 4/3", 10MP Lens, C-Mount
25mm, F2.4, 1.2", 25MP Lens, C-Mount
25mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
25mm, F2.0, 4/3", 10MP Lens, C-Mount
35mm, F2.4, 1.2", 25MP Lens, C-Mount
35mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
35mm, F2.0, 4/3", 10MP Lens, C-Mount
50mm, F2.4, 1.2", 25MP Lens, C-Mount
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
MV-ACU3-MBMs(down)-AM-ST-0.5m
MV-ACU3-MBMs-AM-FL-3m
USB3.0 AOC fiber cable
MV-ACU3-MBMs-AM-ST-0.5m
MV-ACU3-MBMs(down)-AM-ST-1m
USB3.0 AOC fiber cable
MV-ACU3-MBMs-AM-ST-1m
MV-ACU3-MBMs(down)-AM-ST-2m
USB3.0 AOC fiber cable
MV-ACU3-MBMs-AM-ST-2m
MV-ACU3-MBMs(down)-AM-ST-3m
