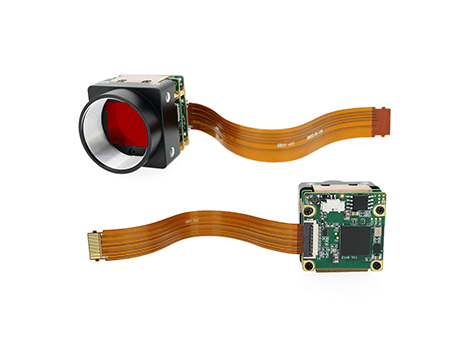

VEN-1220-32U3C-FPC

Specifications

Model

VEN-1220-32U3C-FPC

Product Families

VENUS

Resolution

4024×3036

Frame Rate (fps)

32.3

Sensor Manufacturer

Sony

Sensor

1/1.7" IMX226 Rolling shutter CMOS

Pixel Size

1.85μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

7.44 × 5.62 mm

Диагонал на сензора

9.33 mm

Pixel Bit Depth

8 bit，12 bit

Data Interface

FPC

Lens Mount

C

Spectrum

Color

Pixel Formats

Bayer RG8, Bayer RG12

Signal Noise Ratio

40.61 dB

Exposure Time

10μs ~ 1s

Gain

0dB ~ 24dB

Binning

1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Decimation

FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Reverse X/Y

Reverse X/Y

I/O Interface

1 programmable GPIO

Power Requirement

Power over USB3.0

Power Consumption

1.79 W @ 5 VDC

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

29 mm × 25.1 mm × 29 mm

Weight

36 g

Conformity

CE, RoHS, USB3 Vision, GenICam
