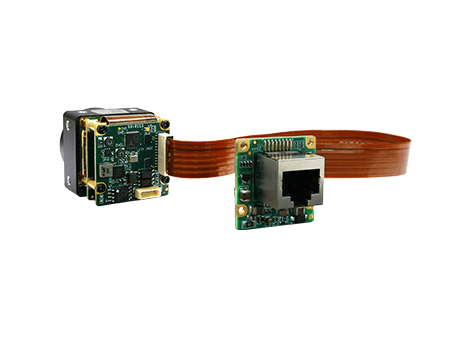

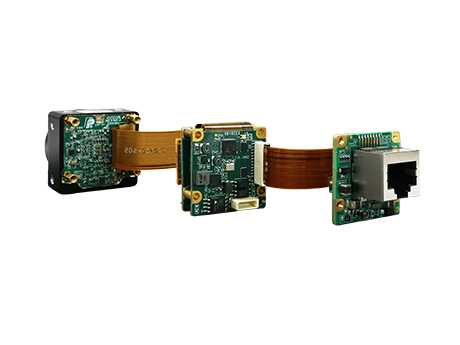

VE2S-161-75GM-P

Specifications

Model

VE2S-161-75GM-P

Product Families

VENUS

Resolution

1440×1080

Frame Rate (fps)

75.6

Sensor Manufacturer

Sony

Sensor

1/2.9" IMX296 Global shutter CMOS

Pixel Size

3.45μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

4.97 × 3.73 mm

Диагонал на сензора

6.21 mm

Pixel Bit Depth

8 bit, 10 bit

Data Interface

GigE

Lens Mount

C

Spectrum

Mono

Pixel Formats

Mono8，Mono10

Signal Noise Ratio

40.48 dB

Exposure Time

UltraShort: 1μs~100μs, Standard: 20μs ~ 1s

Gain

0dB ~ 24dB

Binning

FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4, Sensor: 1×1, 2×2

Decimation

FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Reverse X/Y

Reverse X/Y

I/O Interface

1 input and 1 output with opto-isolated, 1 programmable GPIO

Power Requirement

12 ~ 24 VDC or PoE

Power Consumption

2.24 W @ 12 VDC；2.66 W @ PoE

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

31 mm × 29 mm × 30.9 mm

Weight

49 g

Conformity

RoHS，GigE Vision，GenICam
