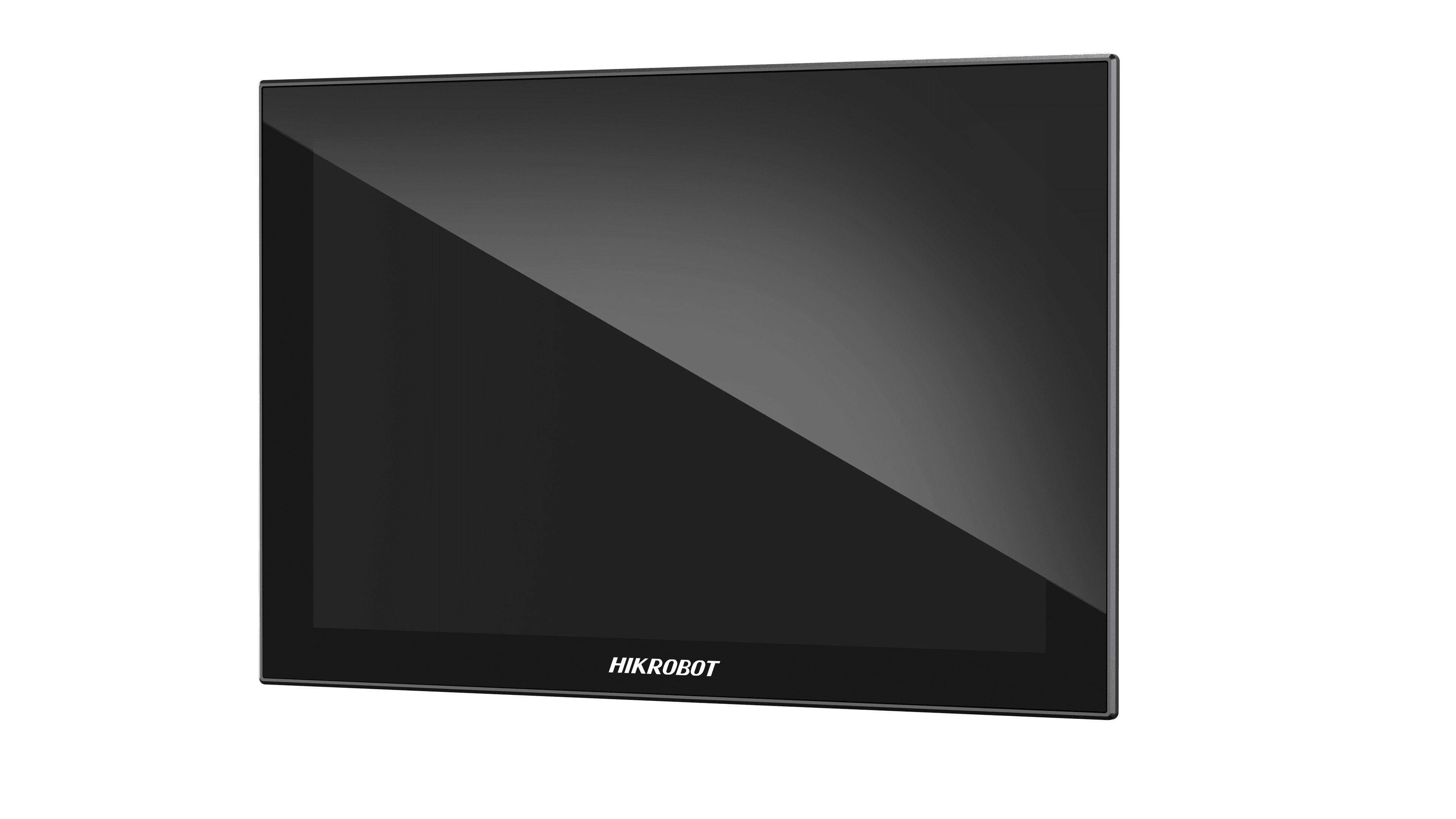

VT2000 Panel PC，J6412，8GB+128G SSD；
MV-VT2000-128G40-NNHikrobot
1–2 MP Вижън контролери
Model
- Product Model
- MV-VT2000-128G40-NN
- Type
- VT2000 Panel PC，J6412，8GB+128G SSD；
Performance
- CPU
- Intel® Celeron® CPU J6412
- Memory
- 8 GB
- Storage
- 128 GB SSD
- Operating system
- Unactivated Windows 10 2021H2

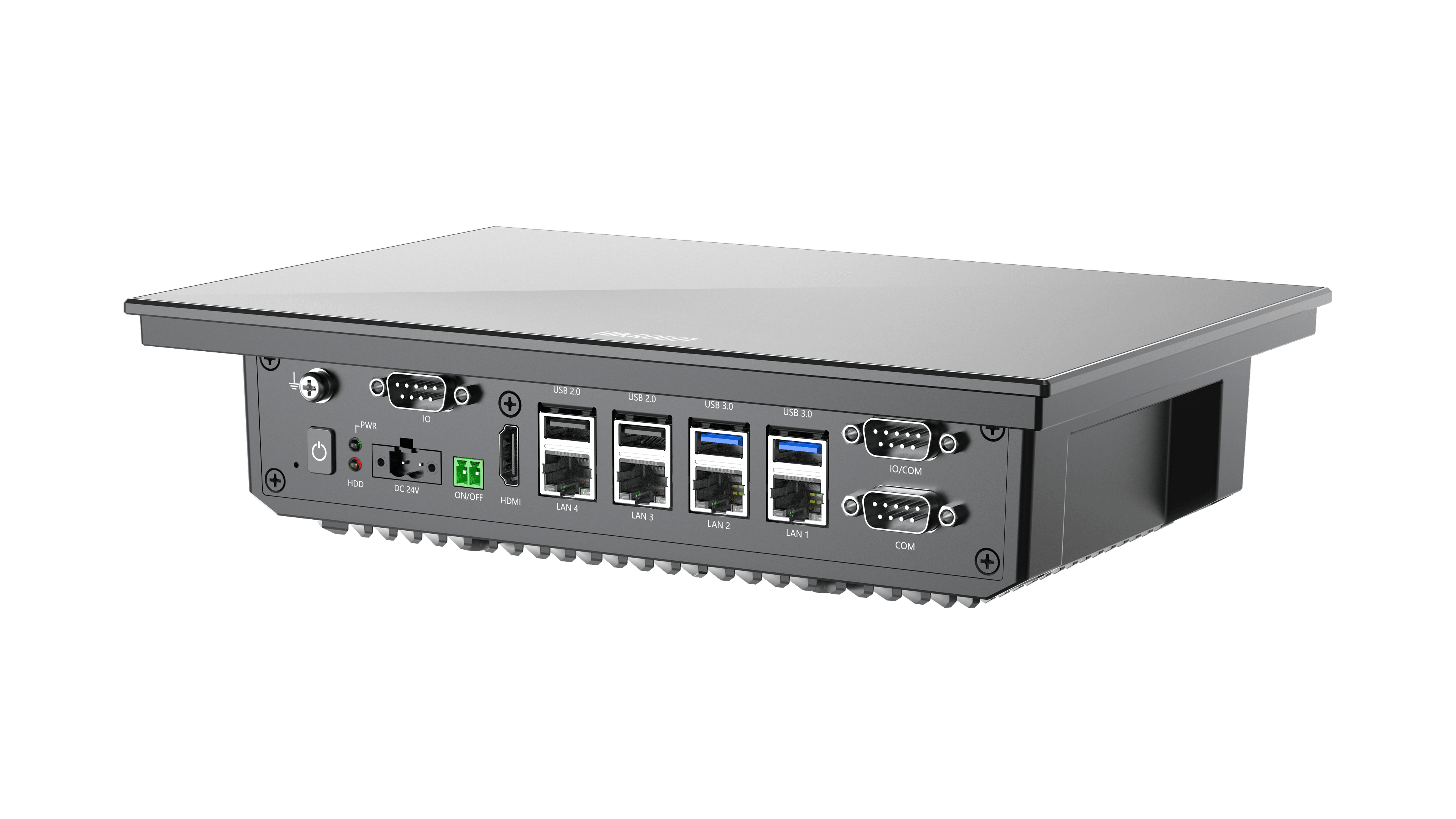

External interface
- Display interface
- HDMI interface × 1 (1920 × 1080 @ 60 Hz)
- Digital I/O
- Supports up to opto-isolated input × 7 and opto-isolated output × 7
- Network interface
- GigE interface × 4
- USB interface
- USB 3.0 × 2 USB 2.0 × 2
- Serial port
- RS-232 × 2, supports switching to RS-485 and RS-422.
Electrical feature
- Power supply
- 24 VDC
- Power consumption
- Typ. 30 W
Display
- Screen Size
- 10.1 inches
- Resolution
- 1280 × 800
- Backlight
- LED
- Backlight Lifetime
- ≥ 30000 hrs
- Viewing Angle
- 85°(R)/ 85°(L)/ 85°(B)/ 85°(T)
- Contrast Ratio
- 800:1
- Brightness
- 350 cd/m2 (TYP)
Touchscreen
- Touch Type
- Multi-point capacitive touch screen
- Multi-touch
- Touch supports with 10 points under Windows operating system
- Touch Times
- ≥ 35 million times
- Transmittance
- ≥ 85%
- Surface Hardness
- 6 H
Mechanical
- Dimension
- 255 mm × 170 mm × 63 mm (10.0" × 6.7" × 2.5")
- Weight
- Approx. 2 kg (10.6 lb.)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) (wind speed 0.7 m/s) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Certification
- CE, KC
