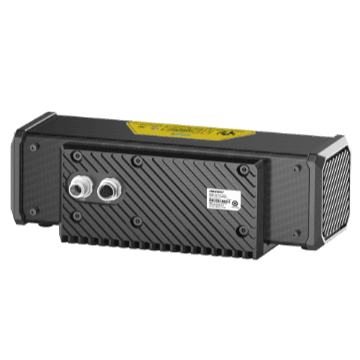

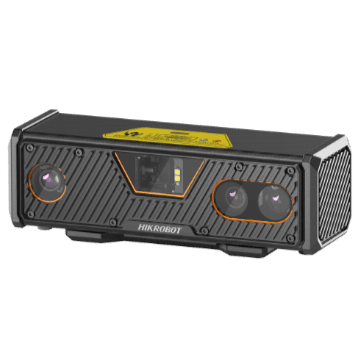

Galvanometer Laser 3D Camera(MV-RS-Base-S)
MV-RS-BASE-SHikrobot
5–12 MP GigE 3D камери — IP65
Model
- Product Model
- MV-RS-Base-S
- Type
- Galvanometer Laser 3D Camera(MV-RS-Base-S)
Performance
- Near field of view
- 280 mm × 220 mm @ 400 mm
- Typical field of view
- 480 mm × 320 mm @ 600 mm
- Far field of view
- 620 mm × 440 mm @ 800 mm
- Clearance distance (CD)
- 400 mm
- Measurement range (MR)
- 400 mm
- Repeatability (Z-axis)*
- 0.03 mm @ 600 mm
- VDI/VDE accuracy*
- 0.05 mm @ 600 mm
- Resolution
- RGB: 3200 × 1944 Depth: 1632 × 1080
- Data acquisition time
- 0.4 s to 0.9 s
- Image output delay
- 0.8 s to 1.5 s
- Data type
- Original image (mono and color images), depth image, RGB-D image
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s)
- Digital I/O
- 12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
- Power supply
- 24 VDC
- Power consumption
- Typ. 15 W @ 24 VDC
Mechanical
- Dimension
- 236.3 mm × 79.8 mm × 98.5 mm (9.3" × 3.1" × 3.9")
- Weight
- Approx. 1.3 kg (2.9 lb.)
- Ingress protection
- IP65
- Temperature
- Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
Laser
- Laser safety class
- Class 2
- Wavelength
- 450 nm
General
- Client software
- RobotPilot, HiViewer
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11
- Certification
- RoHS, CE
