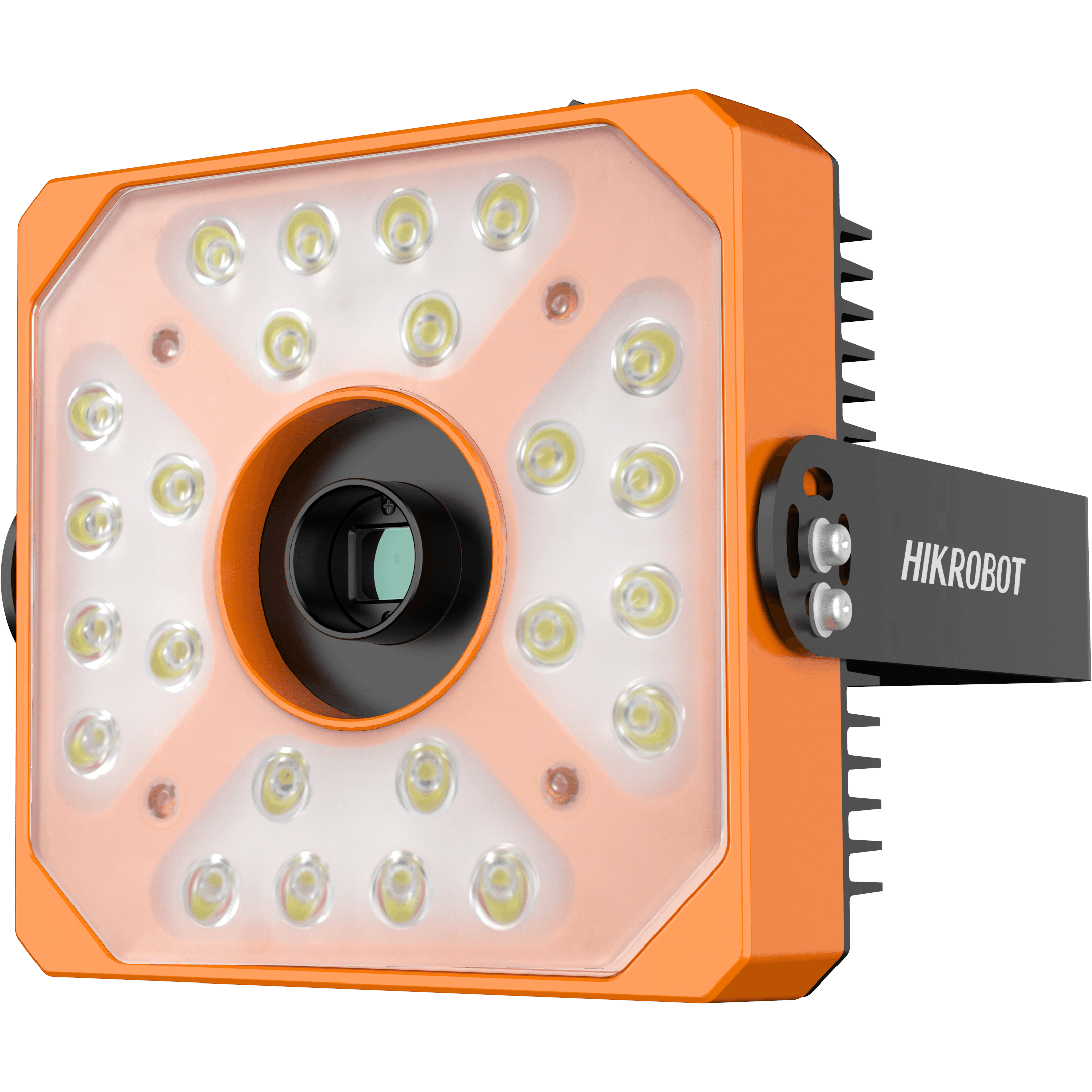

12MP Logistic Code Reading Set

Name: 12MP Logistic Code Reading Set
Brand: Hikrobot
SKU: MV-PD010003-12M-16C

MV-PD010003-12M-16CHikrobot

12–25 MP GigE Четци на кодове — 16 mm, F2.8 to F16

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128, Codabar, EAN 2D codes: QR Code, Data Matrix
Focal length: 16 mm
Best working distance: 1550 mm
Field of view (range): 730 mm × 550 mm @10 mil
Depth of field: 650 mm
Resolution: 4024 × 3036
Max. frame rate: 9.6 fps @4024 × 3036
Aperture: F2.8 to F16
Center illuminance: 9000 lux @1000 mm
Uniformity: 0.56
Luminous flux: 5900 lm
Light source wavelength: 420 nm to 730 nm
Color temperature: 6500 K
Mono/color: Mono
Pixel format: Mono 8

Data interface: Gigabit Ethernet
Digital I/O: 6-pin connecting terminal provides power and I/O, including opto-isolated input × 1 (Line 0), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply: 24 VDC
Max. power consumption: 44 W

Dimension (without lens): 164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3")
Weight (without lens): Approx. 1500 g (3.3 lb.)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity: 20% to 80% RH, non-condensing

Изчислено по конектора и протокола от каталога на производителя — не е негов официален списък. Питайте ни за потвърждение
