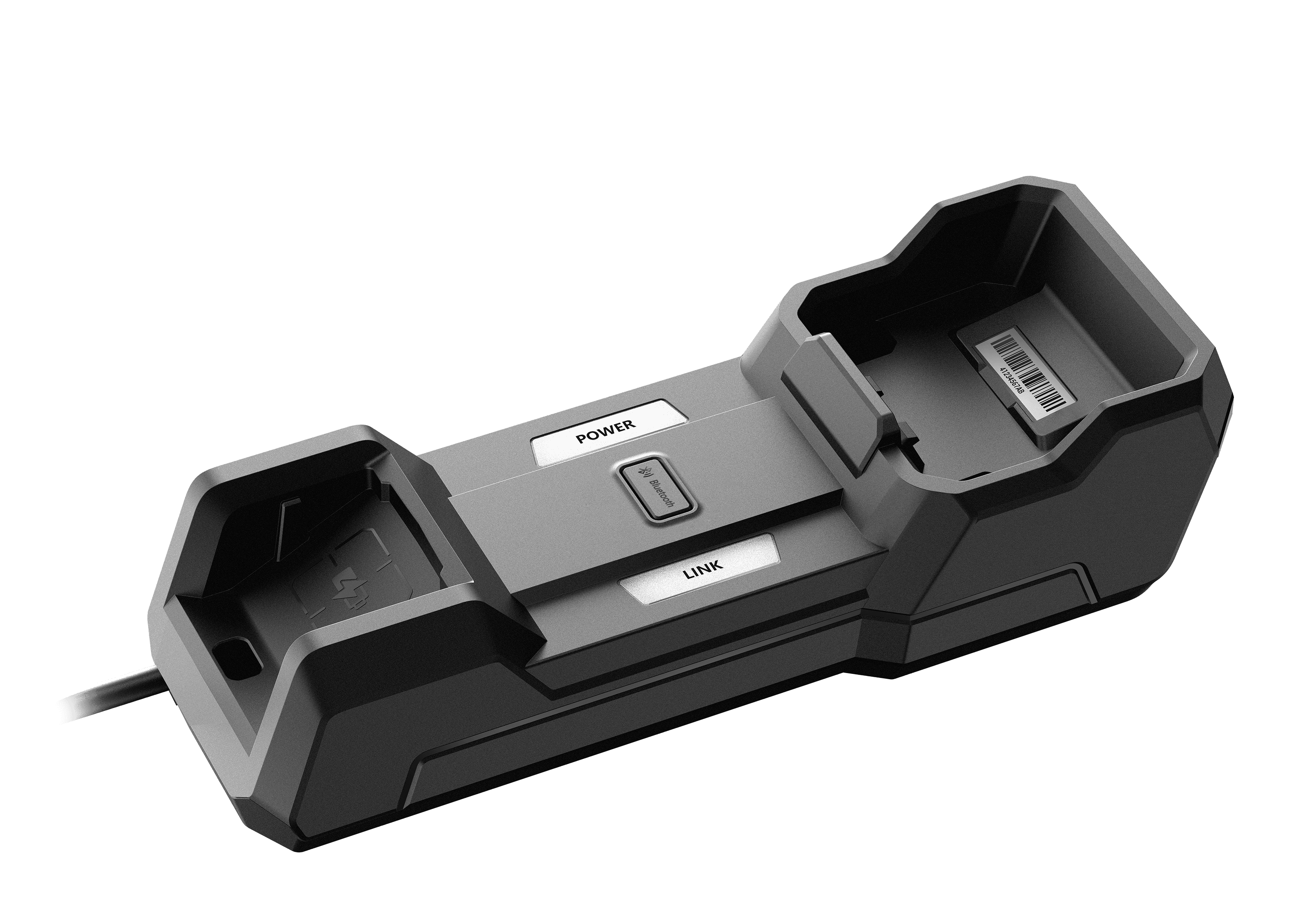

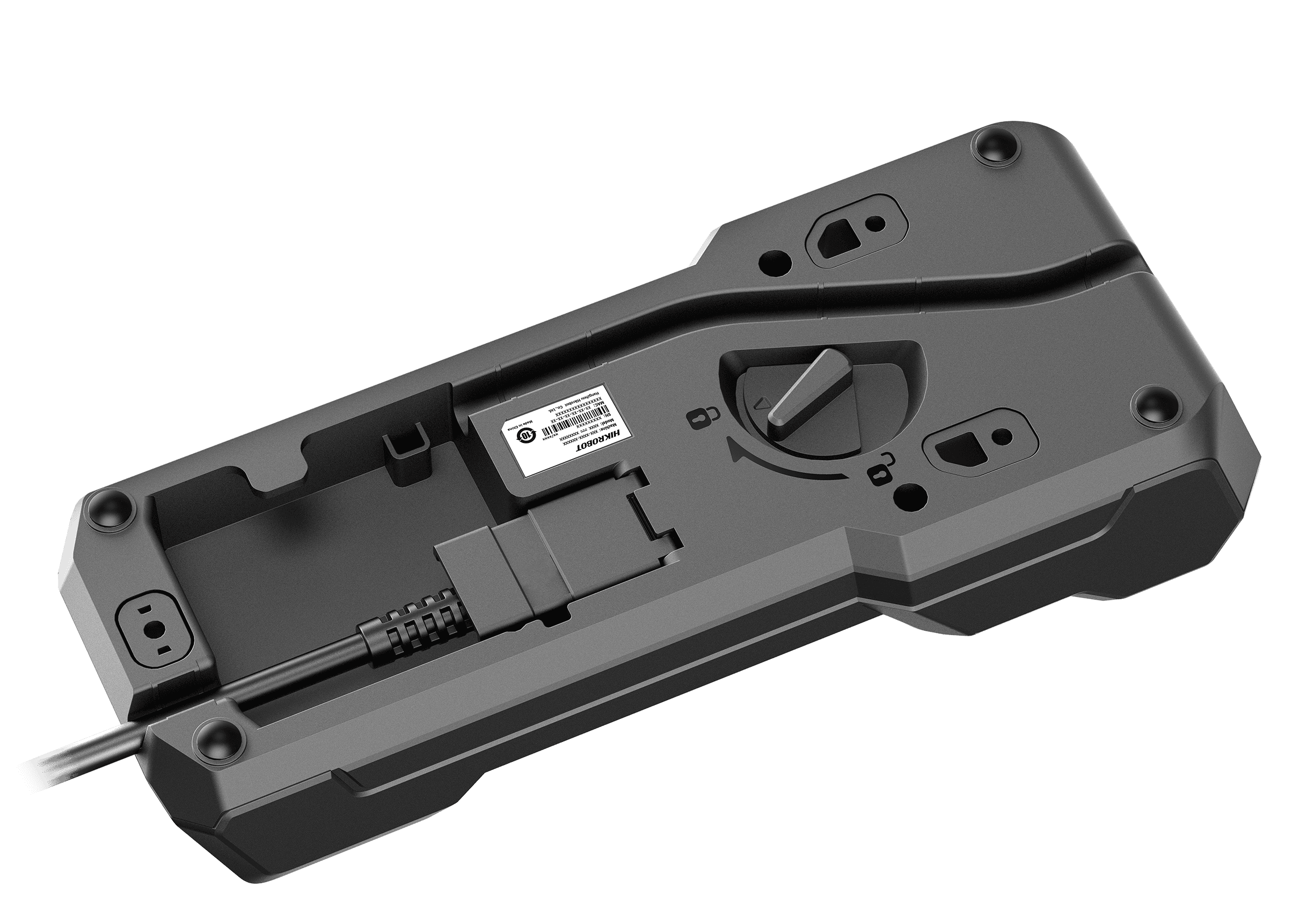

LAN Smart Base
MV-IDH9000B/SBASE/LHikrobot
Serial Четци на кодове — IP65
Model
- Product Model
- MV-IDH9000B/SBASE/L
- Type
- LAN Smart Base
Wireless communication
- Communication mode
- Bluetooth BT 5.0, BLE
- Wireless range
- 100 m (open area)
- Communication protocol
- SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, MELSEC
Electrical feature
- Data interface
- Fast Ethernet (100 Mbit/s)2, RS-232, DC terminal
- Power supply
- DC terminal: 12 VDC to 24 VDC PoE: 48 VDC
- Current consumption
- DC terminal: 1.1 A (max.), 0.15 A (during standby) PoE: 0.35 A (max.), 0.1 A (during standby)
- Charging time
- 6 h
Mechanical
- Dimension
- 257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7")
- Weight
- Approx. 380 g (0.8 lb.)
- Ingress protection
- IP65
- Temperature
- Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
- Humidity
- 5% RH to 95% RH (no condensation)
Фърмуер
