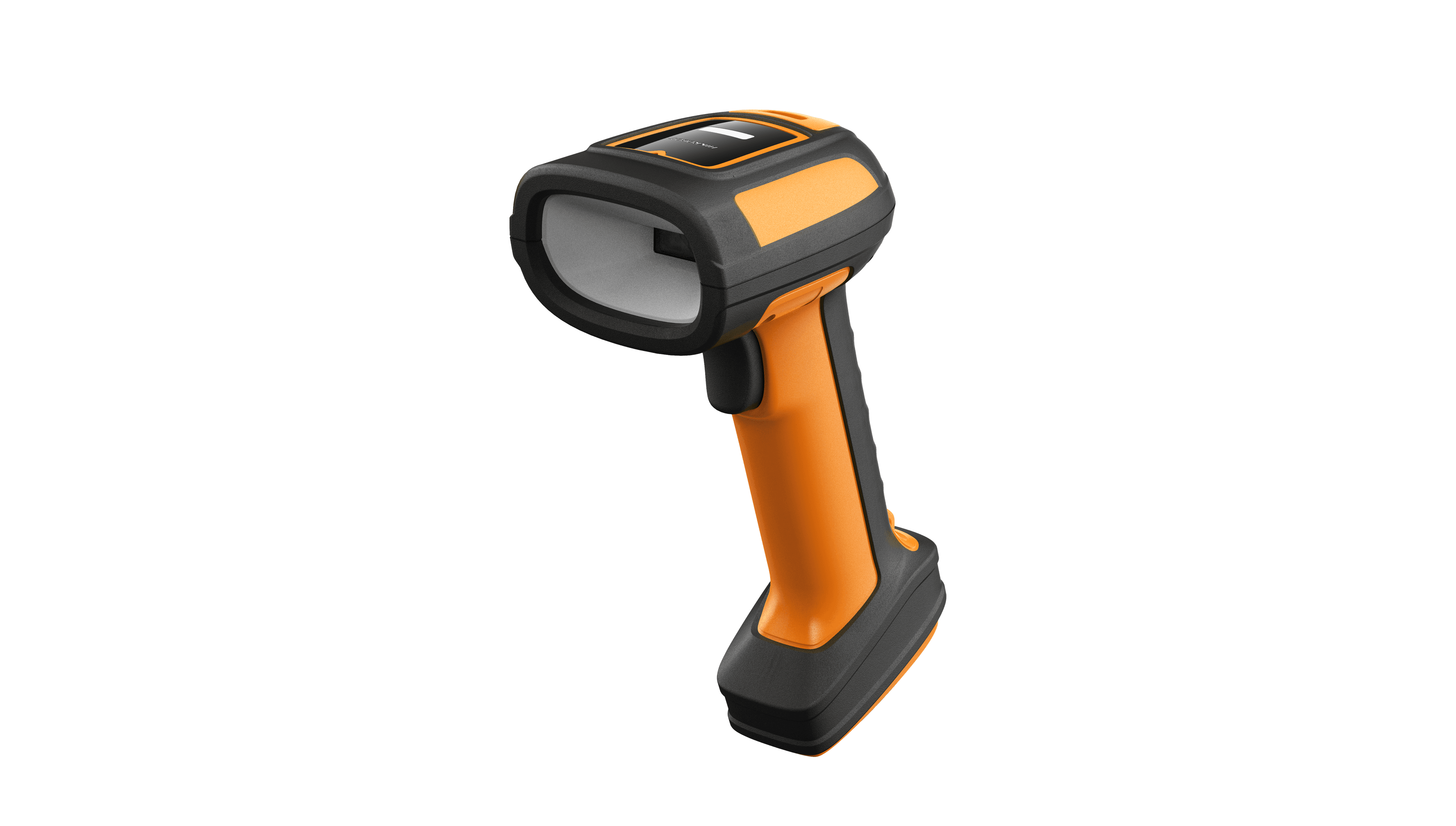

1MP 7mm wireless Industrial Handheld Code Reader（No Base）
MV-IDH7000B/10NR/07RNHikrobot
1–2 MP USB2 Четци на кодове — 6.7 mm, CMOS
Model
- Product Model
- MV-IDH7000B/10NR/07RN
- Type
- 1MP 7mm wireless Industrial Handheld Code Reader（No Base）
Performance
- Symbologies
- 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417
- Min. accuracy
- 3 mil
- Sensor type
- CMOS
- Resolution
- 1280 × 800
- Depth of field
- Code 39 (3 mil): 15 mm to 60 mm Code 39 (5 mil): 5 mm to 80 mm Data Matrix (5 mil): 10 mm to 70 mm Data Matrix (10 mil): 0 mm to 110 mm1 QR Code (5 mil): 10 mm to 70 mm
- Field of view
- Horizontal 31°, vertical 20°
- Detection angle
- Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
- Symbol contrast
- 20%
Wireless communication
- Communication mode
- Bluetooth BT 5.0, BLE
- Wireless range
- 100 m (open range)
Electrical feature
- Battery
- 3150 mAh
- Charging time
- Network-interface device: Shutdown mode: 12 VDC (12 V, 2 A): 3.5 h USB-interface device: Shutdown mode: USB 3.0 (5 V, 1 A): 4 h, 12 VDC (12 V, 2 A): 3.5 h
- Endurance
- 13 h (interval scanning, once in 2 seconds)
Mechanical
- Focal length
- 6.7 mm
- Ambient illumination
- 0 lux to 100000 lux
- Light source
- Direct lighting: white LED Diffused reflection lighting: red LED
- Aiming system
- Cross laser aiming
- Prompt
- LED indicator, buzzer, vibrator
- Dimension
- 73.4 mm × 104 mm × 215.2 mm (2.9" × 4.1" × 8.5")
- Weight
- Approx. 410 g (0.9 lb.)
- Ingress protection
- IP65
- Temperature
- Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
- Drop height
- 2.0 m
Laser
- Laser safety class
- Laser 2
- Wavelength
- 650 nm
- Pulse width
- 8 ms
- Maximum power
- 1 mW
General
- Client software
- IDMVS
- Certification
- CE, KC
Smart Base
- Communication protocol
- Network-interface device: SmartSDK, TCP Client, FTP, TCP Server, Profinet, Ethernet/IP, Modbus, UDP, Serial, Bluetooth, FINS, Melsec/SLMP USB-interface device: SmartSDK, USB (HID/CDC), Bluetooth
- Data interface
- Network-interface device: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB-interface device: USB 2.0, RS-232, DC terminal3
- Charging time
- Network-interface device: 4 h USB-interface device: Adapter: 4 h, USB: 8 h
- Power supply
- Network-interface device: 12 VDC USB-interface device: USB: 5 VDC, DC terminal: 12 VDC
- Current consumption
- Network-interface device: 0.7 A (max.), 0.06 A (during standby) USB-interface device: USB 2.0: 1.5 A (max.), 0.14 A (during standby); DC terminal: 0.7 A (max.), 0.06 A (during standby)
- Ingress protection
- IP40
- Humidity
- 20% RH to 95% RH (no condensation)
