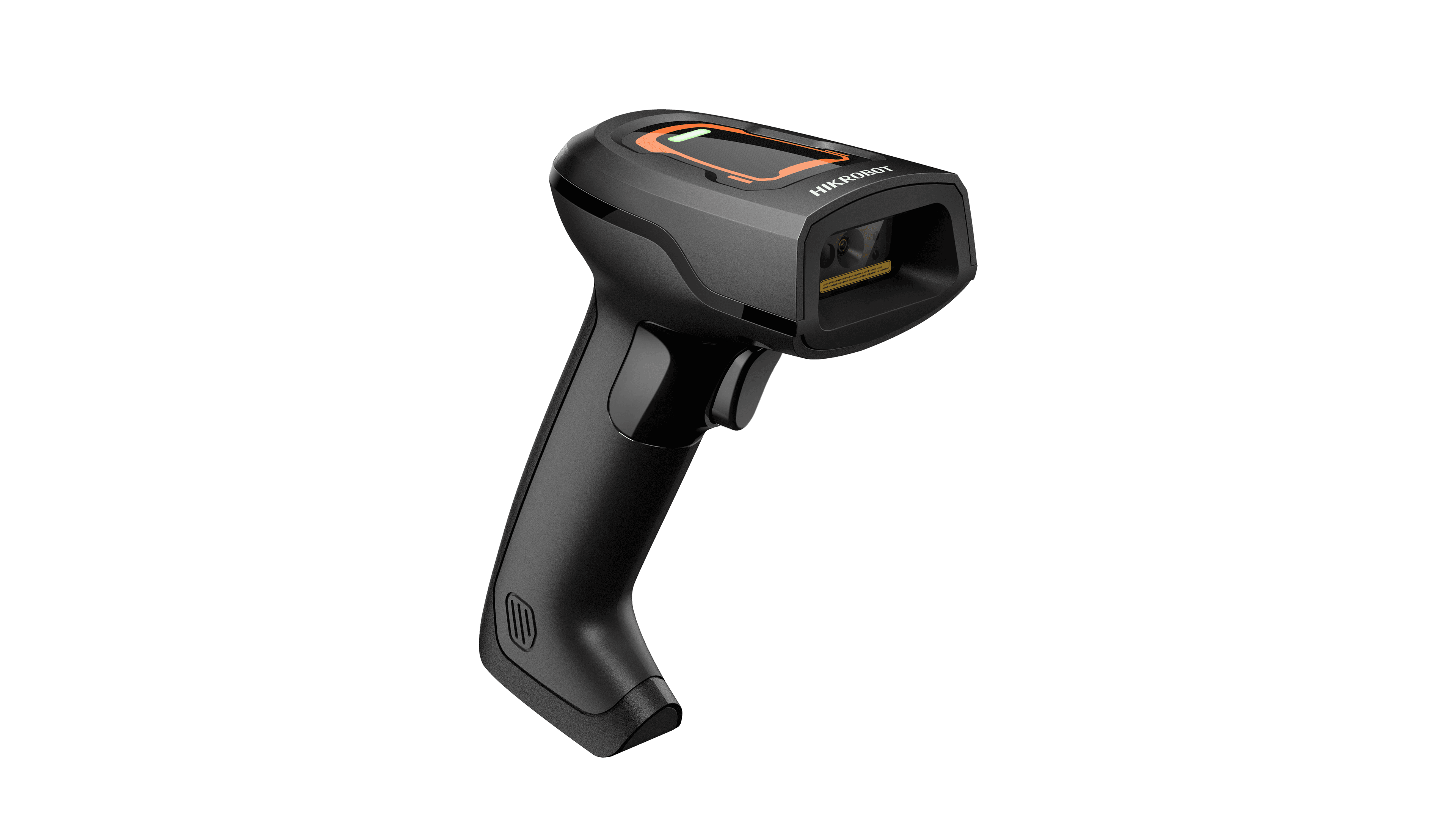

Compact RF Wireless Industial Handheld Code Reader Suit
< 1 MP USB2 Четци на кодове — 3.1 mm, Global shutter, CMOS, IP52
Model
- Product Model
- MV-IDH2000RF/03SR/03WN
- Type
- Compact RF Wireless Industial Handheld Code Reader Suit
Performance
- Symbologies
- 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked codes: PDF417
- Min. accuracy
- 4 mil
- Max. frame rate
- 50 fps
- Sensor type
- CMOS, global shutter
- Pixel size
- 3.74 μm × 3.74 μm
- Sensor size
- 1/6"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 2.39 × 1.8 mm
- Диагонал на сензора
- 2.99 mm
- Resolution
- 640 × 480
- Depth of field
- EAN 13 (13 mil): 30 mm to 240 mm Code 39 (5 mil): 50 mm to 100 mm Code 128 (10 mil): 30 mm to 240 mm Data Matrix (10 mil): 40 mm to 130 mm QR Code (15 mil): 15 mm to 205 mm
- Field of view
- Horizontal 42°, vertical 32°
- Symbol contrast
- 20%
- Detection angle
- Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Wireless communication
- Radio frequency
- 2.4 G
- Wireless range
- 80 m (open range)
- Communication protocol
- SmartSDK, USB, 2.4 G
Electrical feature
- Data interface
- Code reader: USB 2.0 (Type B) Smart base: USB 2.0 (Type B), USB 2.0 (Type A)
- Battery
- 2700 mAh, chargeable lithium battery
- Charging time
- 6 h
- Endurance
- 12 h (interval scanning, once in 2 seconds)
- Power supply
- 5 VDC
- Max. power consumption
- 6 W @ 5 VDC
Mechanical
- Focal length
- 3.1 mm
- Lens mount
- M5.0-mount
- Ambient illumination
- 0 lux to 100000 lux
- Light source
- White LED
- Aiming system
- Orange LED
- Prompt
- LED indicator, buzzer
- Dimension
- Code reader: 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") Smart base: 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0")
- Weight
- Code reader: Approx. 160 g (0.4 lb.) Smart base: Approx. 120 g (0.3 lb.)
- Ingress protection
- Code reader: IP52 Smart base: IP40
- Temperature
- Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Humidity
- 5% RH to 95% RH (no condensation)
Laser
- Laser safety class
- Laser 2
- Wavelength
- 650 nm
- Beam divergence angle
- 14.5°
- Pulse width
- 8 ms
- Repetitive frequency
- 50 Hz
- Maximum power
- 1 mW
General
- Client software
- IDMVS
- Certification
- CE, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
7.17 mm
Мащаб: 0.024×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
Подобни продукти
MV-IDH2000/13NR/05WP/U/PM

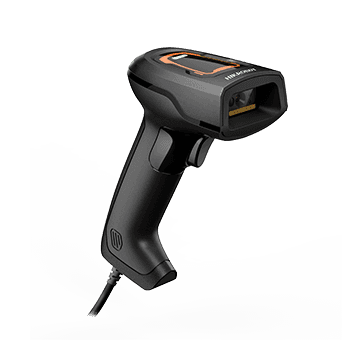

Compact Industrial Wired Handheld Code Reader（USB）
MV-IDH2000/13SR/05WP/U/PM
Compact Industrial Wired Handheld Code Reader（USB）
MV-IDH2000RF/13NR/05WN
Compact wireless Industial Handheld Code Reader
MV-IDH2000RF/13SR/05WN
Compact wireless Industial Handheld Code Reader
MV-IDH2000/03SR/03WN/U
Enterprise USB-Wired Handheld Code Reader
MV-IDH2000B/CBASE/U
IDH2000 series Wireless Handheld Code Reader Charge Base
MV-IDH2000/13NR/05WN/U

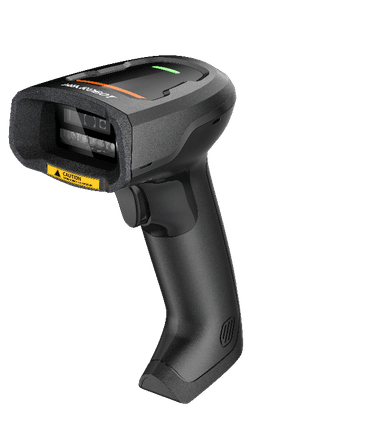

Industial Wired Handheld Code Reader
