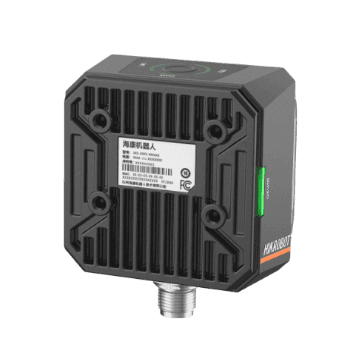

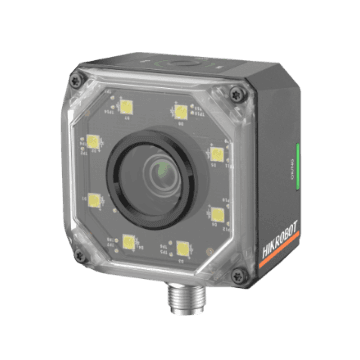

6mm Mechanical Autofocus len 1.4MP PRO Series Compact Industrial Code Reader

Name: 6mm Mechanical Autofocus len 1.4MP PRO Series Compact Industrial Code Reader
Brand: Hikrobot
SKU: MV-ID3016PM-06M-WBN

MV-ID3016PM-06M-WBNHikrobotGlobal shutter →

1–2 MP Четци на кодове — 6 mm, Global shutter, M12-mount, IP67

Model

Product Model: MV-ID3016PM-06M-WBN
Type: 6mm Mechanical Autofocus len 1.4MP PRO Series Compact Industrial Code Reader

Symbologies: 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 25, and Pharmacode 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code Stacked codes: PDF417, MicroPDF417
Max. frame rate: 60 fps
Max. reading speed: 84 codes/sec
Sensor type: Global shutter, mono, 1/2.9", 3.45 μm × 3.45 μm
Resolution: 1408 × 1200
Exposure time: 16 μs to 1 sec
Gain: 0 dB to 45 dB

Data interface: Fast Ethernet (100 Mbit/s)
Communication protocol: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, UDP, Fins, Modbus RTU, KV
Digital I/O: V3.0: 17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1/2) × 3, isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top. V2.0: 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top.
Power supply: 24 VDC
Power consumption: Avg.: 9 W @ 24 VDC (light source enabled) Max.: 48 W @ 24 VDC (light source enabled)

Focal length: 6 mm
Field of view: 44° (H) × 32° (V)
Lens mount: M12-mount, mechanical focus supported
Lens cap: Transparent lens cap by default. Fully-polarized lens cap is optional.
Light source: White light by default. Red/blue/IR light is optional.
Indicator: Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Shell material: ADC12
Dimension: 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
Weight: Approx. 280 g (0.6 lb.)
Ingress protection: IP67 (under proper installation of waterproof lens cap)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity: 20% RH to 95% RH (no condensation)
Vibration resistance: Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance: Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)

Изчислено по конектора и протокола от каталога на производителя — не е негов официален списък. Питайте ни за потвърждение
