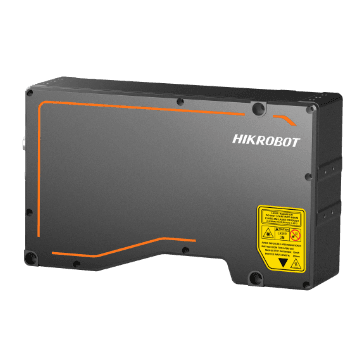

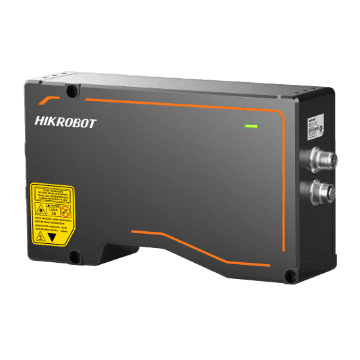

MV-DP3300-03P(O-STD)

Name: MV-DP3300-03P(O-STD)
Brand: Hikrobot
SKU: MV-DP3300-03P

MV-DP3300-03PHikrobot

GigE 3D камери — IP67

Model

Data points/profile: 3200
Reference distance: 300 mm
Measurement range (Z-axis): 210 mm
Measurement range (X-axis): 120 mm @ near field of view 171 mm @ reference distance 220 mm @ far field of view
Resolution (Z-axis): 8.11 μm to 26.50 μm
Repeatability (Z-axis)*: 2.03 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR): 0.01
Profile data interval: 37.4 μm to 73.1 μm
Scan frame rate: 1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode)
Data output: Depth image, profile data, brightness image
Trigger mode: Software trigger, hardware trigger (differential encoder)
Laser safety class: Class 3R
Wavelength: 650 nm

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power supply: 24 VDC
Power consumption: Typ. 13.8 W @ 24 VDC

Dimension: 210.5 mm × 125.5 mm × 59 mm (8.3" × 4.9" × 2.3")
Weight: Approx. 1550 g (3.4 lb.)
Ingress protection: IP67
Temperature: Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 85% RH (no condensation)

Client software: 3DMVS, VM3D, or third-party 3D software
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
