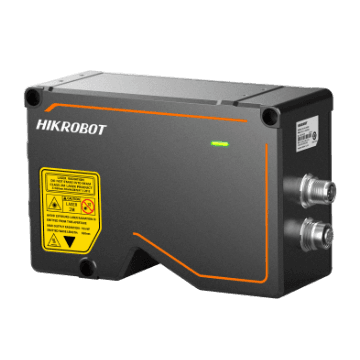

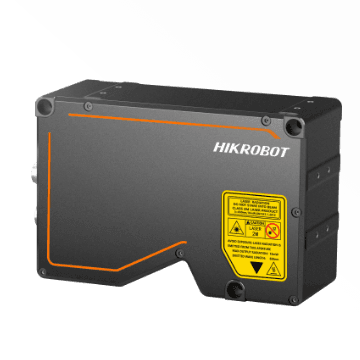

MV-DP2120-01P(O-STD)

Name: MV-DP2120-01P(O-STD)
Brand: Hikrobot
SKU: MV-DP2120-01P

MV-DP2120-01PHikrobot

GigE 3D камери — IP67

Model

Data points/profile: 2048
Reference distance: 120 mm
Measurement range (Z-axis): 80 mm
Measurement range (X-axis): 58 mm @ near field of view 76.5 mm @ reference distance 95 mm @ far field of view
Resolution (Z-axis): 3.66 μm to 8.36 μm
Repeatability (Z-axis)*: 1.48 μm @ data that sensor tests gauge block on optical platform*
Linearity Z-axis (±% of MR): 0.01
Profile data interval: 28.4 μm to 49.6 μm
Scan frame rate: 660 Hz (within max. measurement range), max. 10 kHz (in ROI mode)
Data output: Original image, profile data, depth image, brightness image
Trigger mode: Software trigger, hardware trigger (differential encoder)
Laser safety class: Class 3R
Wavelength: 405 nm

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Power supply: 24 VDC
Power consumption: Typ. 13.8 W @ 24 VDC

Dimension: 144.5 mm × 96 mm × 58 mm (5.7" × 3.8" × 2.3")
Weight: Approx. 950 g (2.1 lb.)
Ingress protection: IP67
Temperature: Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 85% RH (no condensation)

Client software: 3DMVS, VM3D, or third-party software
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
