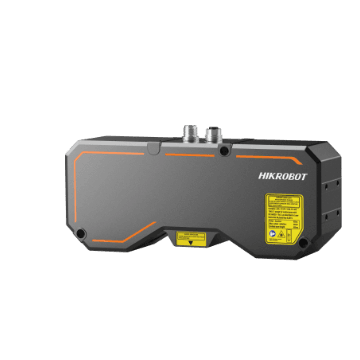

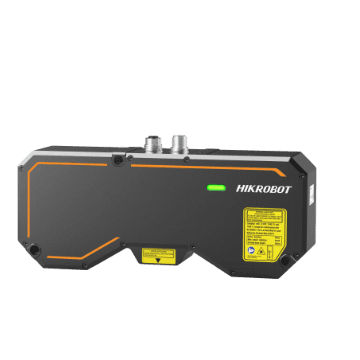

MV-DP2060-01D V2.0

Name: MV-DP2060-01D V2.0
Brand: Hikrobot
SKU: MV-DP2060-01DV2.0

MV-DP2060-01DV2.0Hikrobot

GigE 3D камери — IP67

Model

Data points/profile: 3200
Reference distance: 63.5 mm
Measurement range (Z-axis): 26 mm
Measurement range (X-axis): 26.5 mm @ near field of view 31 mm @ reference distance 35.5 mm @ far field of view
Resolution (Z-axis): 1.51 μm to 2.68 μm
Repeatability (Z-axis)*: 0.49 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR): 0.008
Profile data interval: 8.5 μm to 11.6 μm
Scan frame rate: 1.7 kHz to 23.9 kHz (in high frame rate mode)
Data output: Profile data, depth image, brightness image, width image
Trigger mode: Software trigger, hardware trigger (single-ended, differential, differential encoder)
Laser safety class: Class 3R
Wavelength: 405 nm

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), differential output × 1 (Line 1)
Power supply: 24 VDC
Power consumption: Typ. 21 W @ 24 VDC

Dimension: 240 mm × 98 mm × 58 mm (9.4" × 3.9" × 2.3")
Weight: Approx. 1500 g (3.3 lb.)
Ingress protection: IP67
Temperature: Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 85% RH (no condensation)

Client software: 3DMVS, VM3D, or third-party 3D software
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Изчислено по конектора и протокола от каталога на производителя — не е негов официален списък. Питайте ни за потвърждение
