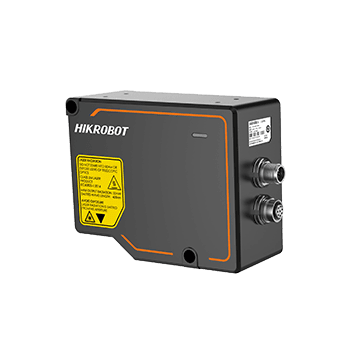

MV-DP2020-01P V2.0

Name: MV-DP2020-01P V2.0
Brand: Hikrobot
SKU: MV-DP2020-01PV2.0

MV-DP2020-01PV2.0Hikrobot

GigE 3D камери — IP67

Model

Data points/profile: 3200
Reference distance: 21.4 mm
Measurement range (Z-axis): 6.8 mm
Measurement range (X-axis): 14 mm @ near field of view 14.3 mm @ reference distance 14.6 mm @ far field of view
Resolution (Z-axis): 0.71 μm to 0.78 μm
Repeatability (Z-axis)*: 0.22 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR): 0.01
Profile data interval: 4.38 μm to 4.67 μm
Scan frame rate: 1.7 kHz to 23.9 kHz (high frame rate mode)
Data output: Profile data, depth image, brightness image
Trigger mode: Software trigger, hardware trigger (differential encoder)
Laser safety class: Class 3R
Wavelength: 405 nm

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Power supply: 24 VDC
Power consumption: Typ. 15.2 W @ 24 VDC

Dimension: 139.5 mm × 111.5 mm × 60.5 mm (5.5" × 4.4" × 2.4")
Weight: Approx. 1075 g (2.4 lb.)
Ingress protection: IP67
Temperature: Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 85% RH (no condensation)

Client software: 3DMVS
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
