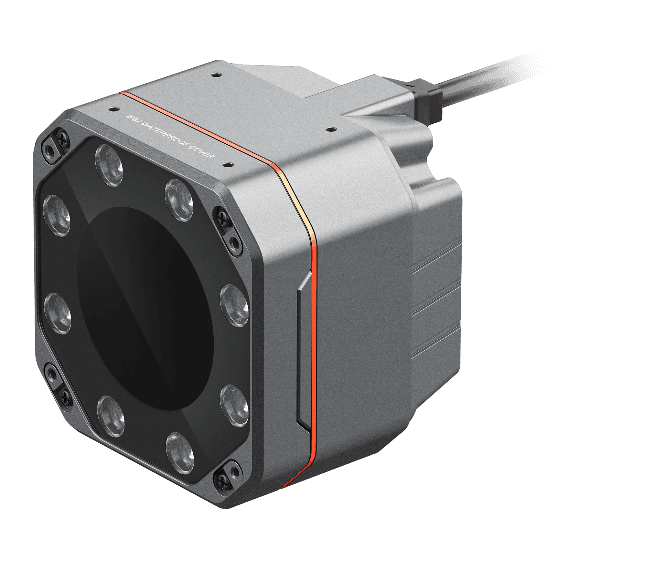

6MP Area Scan Camera, 3rd Gen., GigE, color, MAX, 16mm liquid lens, white lighting, with lens cover

Name: 6MP Area Scan Camera, 3rd Gen., GigE, color, MAX, 16mm liquid lens, white lighting, with lens cover
Brand: Hikrobot
SKU: MV-CT2CG0060/R/16LC/WN

MV-CT2CG0060/R/16LC/WNHikrobotСензор: IMX178 Rolling shutter →

Заяви оферта Datasheet PDF Ръководство CAD чертеж

5–12 MP GigE Area Scan камери — IMX178, Rolling shutter, CMOS, C-mount

Model

Product Model: MV-CT2CG0060/R/16LC/WN
Type: 6MP Area Scan Camera, 3rd Gen., GigE, color, MAX, 16mm liquid lens, white lighting, with lens cover

Performance

Sensor type: CMOS, rolling shutter
Sensor model: Sony IMX178
Pixel size: 2.4 μm × 2.4 μm
Sensor size: 1/1.8"
Размер на сензора (изчислен)от резолюция × стъпка на пиксела: 7.37 × 4.92 mm
Диагонал на сензора: 8.86 mm
Resolution: 3072 × 2048
Max. frame rate: 19.5 fps @ 3072 × 2048 Bayer RG 8 40.0 fps @ 3072 × 2048 Bayer RG 8 (lossless compression mode enabled)
Dynamic range: 71.3 dB
SNR: 41.3 dB
Gain: 0 dB to 24 dB
Exposure time: 25 μs to 3.1 sec
Exposure mode: Off/Once/Continuous exposure mode, supports Rolling and Global Reset
Pixel format: Mono 8, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Mono/color: Color
Binning: Supports 1 × 1, 2 × 2, 4 × 4
Decimation: Supports 1 × 1, 2 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type: 8-pin M12 X-Code waterproof aviation connector
Control interface: 8-pin M12 A-Code waterproof aviation connector
Digital I/O: 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply: 9 VDC to 24 VDC, supports PoE
Power consumption: Typ. 1.7 W @ 24 VDC (fast heat balance not enabled and external device not be controlled)

Mechanical

Lens mount: C-mount
Dimension: 42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7")
Weight: Approx. 120 g (0.3 lb.)
Ingress protection: IP67 (under proper lens and lens cap installation and wiring)
Temperature: Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or third-party software meeting with GigE Vision Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility: GigE Vision V2.0, GenICam
Certification: CE, RoHS, KC

Фърмуер

MV_CT060R_19GC01_MAX_STD_V4.6.19_251119_HIKROBOT.zip →

Избор на обектив

Търся

Ширина на сензораmmОт datasheet-а, не от „инчовия“ форматРаботно разстояниеmmЗрително полеmmПиксели по ширинаpx

Фокусно разстояние

22.1 mm

Мащаб: 0.074×

Резолюция на пиксел

0.0408 mm/px

Най-малък откриваем детайл: 0.123 mm

Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.

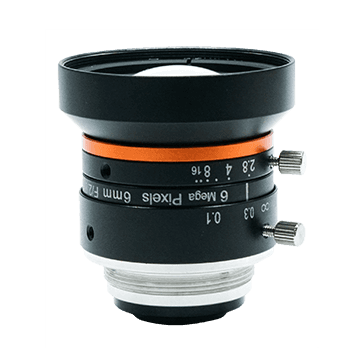

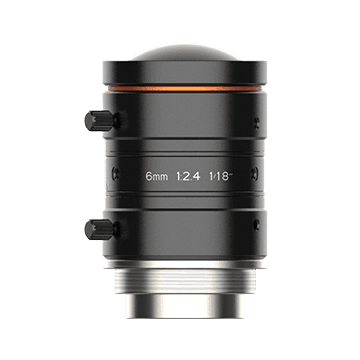

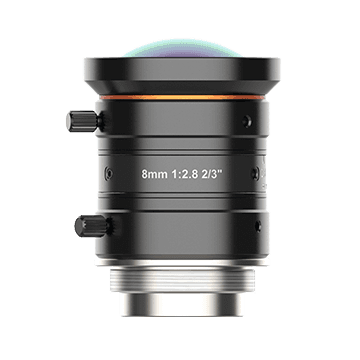

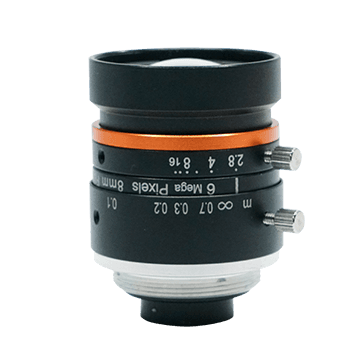

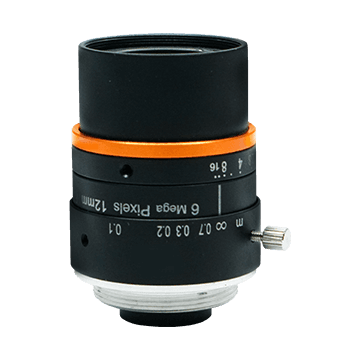

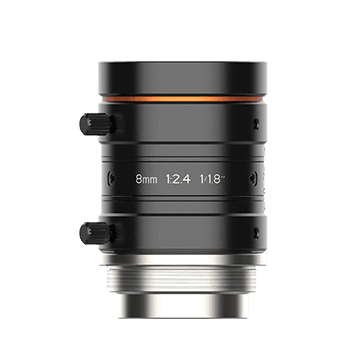

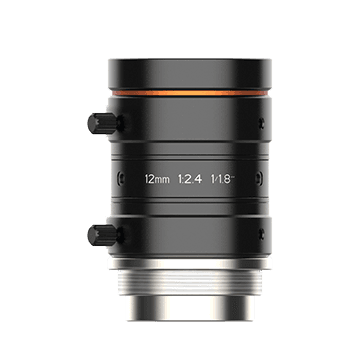

Обективи, които пасват на тази камера

Филтрирано по байонет C-mount и по покритие на сензора — кръгът на изображението е поне 8.86 mm, колкото е диагоналът на тази матрица. По-малък кръг затъмнява ъглите на кадъра. Питайте ни за потвърждение
