5MP Area Scan Camera, 3rd Gen., GigE, Color, MAX

Name: 5MP Area Scan Camera, 3rd Gen., GigE, Color, MAX
Brand: Hikrobot
SKU: MV-CT2CG0050/G/NN/NN

MV-CT2CG0050/G/NN/NNHikrobotGlobal shutter →

Заяви оферта Datasheet PDF Ръководство CAD чертеж

5–12 MP GigE Area Scan камери — Global shutter, CMOS, C-mount, IP67

Model

Product Model: MV-CT2CG0050/G/NN/NN
Type: 5MP Area Scan Camera, 3rd Gen., GigE, Color, MAX

Performance

Sensor type: CMOS, global shutter
Sensor model: Stacked BSI
Pixel size: 3.45 μm × 3.45 μm
Sensor size: 2/3"
Размер на сензора (изчислен)от резолюция × стъпка на пиксела: 8.45 × 7.07 mm
Диагонал на сензора: 11.01 mm
Resolution: 2448 × 2048
Max. frame rate: 24.5 fps @ 2448 × 2048 Bayer GR 8 59.2 fps @ 2448 × 2048 Bayer GR 8 (lossless compression mode enabled)
Dynamic range: 73.9 dB
SNR: 42.4 dB
Gain: High full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB
Exposure time: High full well capacity: 30 μs to 10 sec High sensitivity: 5 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Pixel format: Mono 8, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Mono/color: Color
Binning: Supports 1 × 1, 2 × 2, 4 × 4
Decimation: Supports 1 × 1, 2 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type: 8-pin M12 X-Code waterproof aviation connector
Control interface: 8-pin M12 A-Code waterproof aviation connector
Digital I/O: 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply: 9 VDC to 24 VDC, supports PoE
Power consumption: Typ. 1.6 W @ 24 VDC (fast heat balance not enabled and external device not be controlled)

Mechanical

Lens mount: C-mount
Dimension: 42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7")
Weight: Approx. 120 g (0.3 lb.)
Ingress protection: IP67 (under proper lens and lens cap installation and wiring)
Temperature: Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or third-party software meeting with GigE Vision Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility: GigE Vision V2.0, GenICam
Certification: CE, RoHS, KC

Фърмуер

MV_CT050G_24GC01_MAX_STD_V4.6.3_250821_HIKROBOT.zip →

Избор на обектив

Търся

Ширина на сензораmmОт datasheet-а, не от „инчовия“ форматРаботно разстояниеmmЗрително полеmmПиксели по ширинаpx

Фокусно разстояние

25.4 mm

Мащаб: 0.084×

Резолюция на пиксел

0.0408 mm/px

Най-малък откриваем детайл: 0.123 mm

Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.

Frame grabber-и

MV-GE1004

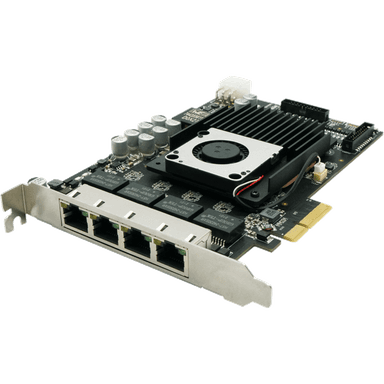

Quad GigE Frame Grabber
