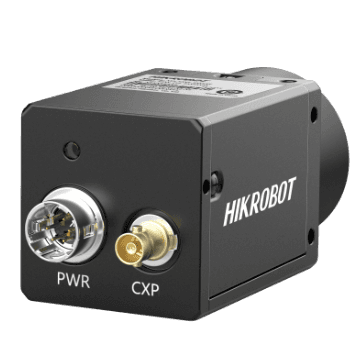

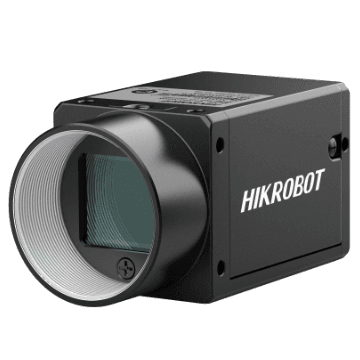

12MP Area Scan Camera, GMAX3412, 1-link CXP-12, C-mount, without fan, without heat sink, Color

Name: 12MP Area Scan Camera, GMAX3412, 1-link CXP-12, C-mount, without fan, without heat sink, Color
Brand: Hikrobot
SKU: MV-CH120-90Y1C-NN

MV-CH120-90Y1C-NNHikrobotСензор: GMAX3412 Global shutter →

Заяви оферта Datasheet PDF Ръководство CAD чертеж

12–25 MP CoaXPress Area Scan камери — GMAX3412, Global shutter, CMOS, C-mount

Model

Product Model: MV-CH120-90Y1C-NN
Type: 12MP Area Scan Camera, GMAX3412, 1-link CXP-12, C-mount, without fan, without heat sink, Color

Performance

Sensor type: CMOS, global shutter
Sensor model: Gpixel GMAX3412
Pixel size: 3.4 μm × 3.4 μm
Sensor size: 1.1"
Размер на сензора (изчислен)от резолюция × стъпка на пиксела: 13.93 × 10.44 mm
Диагонал на сензора: 17.41 mm
Resolution: 4096 × 3072
Max. frame rate: 93.9 fps @ 4096 × 3072 Bayer GB 8
Dynamic range: 59.7 dB
SNR: 39 dB
Gain: 0 dB to 6.1 dB
Exposure time: 6 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode
Mono/color: Color
Pixel format: Bayer GB 8/10/12
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation: Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Data interface: CoaXPress with Micro-BNC interface
Digital I/O: 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Power supply: 12 VDC to 24 VDC, supports PoCXP
Power consumption: Typ. 5 W @ 12 VDC

Mechanical

Lens mount: C-mount
Dimension: Device with heat sink: 29 mm × 85 mm × 42 mm (1.1" × 3.3" × 1.7") Device without heat sink: 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight: Device with heat sink: Approx. 170 g (0.4 lb.) Device without heat sink: Approx. 90 g (0.2 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature for device with heat sink: 0 °C to 50 °C (32 °F to 122 °F) Working temperature for device without heat sink: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or third-party software meeting with CoaXPress Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux
Compatibility: CoaXPress, GenlCam
Certification: CE, RoHS, KC

Фърмуер

MV_CH120_90Y1C_STD_V4.1.6_250225_HIKROBOT.zip →

Избор на обектив

Търся

Ширина на сензораmmОт datasheet-а, не от „инчовия“ форматРаботно разстояниеmmЗрително полеmmПиксели по ширинаpx

Фокусно разстояние

41.8 mm

Мащаб: 0.14×

Резолюция на пиксел

0.0408 mm/px

Най-малък откриваем детайл: 0.123 mm

Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.

Съвместими кабели за данни

MV-ACXP12-HDBNC-HDBNC-HF-10M

High-flex CXP-12 cable，10m

MV-ACXP12-HDBNC-HDBNC-ST-3M

MV-ACXP12-HDBNC-HDBNC-ST-3m

Кабели за захранване и I/O

MV-ACP-H6P(LEFT)-OPEN-ST-5M

MV-ACP-H6p(left)-open-ST-5m

MV-ACP-H6P-OPEN-HF-10M

MV-ACP-H6p-open-HF-10m

MV-ACP-H6P-OPEN-ST-1M

MV-ACP-H6p-open-ST-1m

Frame grabber-и

MV-GY1004

Quad CXP-12 Frame GrabberV2.0

Обективи, които пасват на тази камера

Филтрирано по байонет C-mount и по покритие на сензора — кръгът на изображението е поне 17.41 mm, колкото е диагоналът на тази матрица. По-малък кръг затъмнява ъглите на кадъра. Питайте ни за потвърждение
