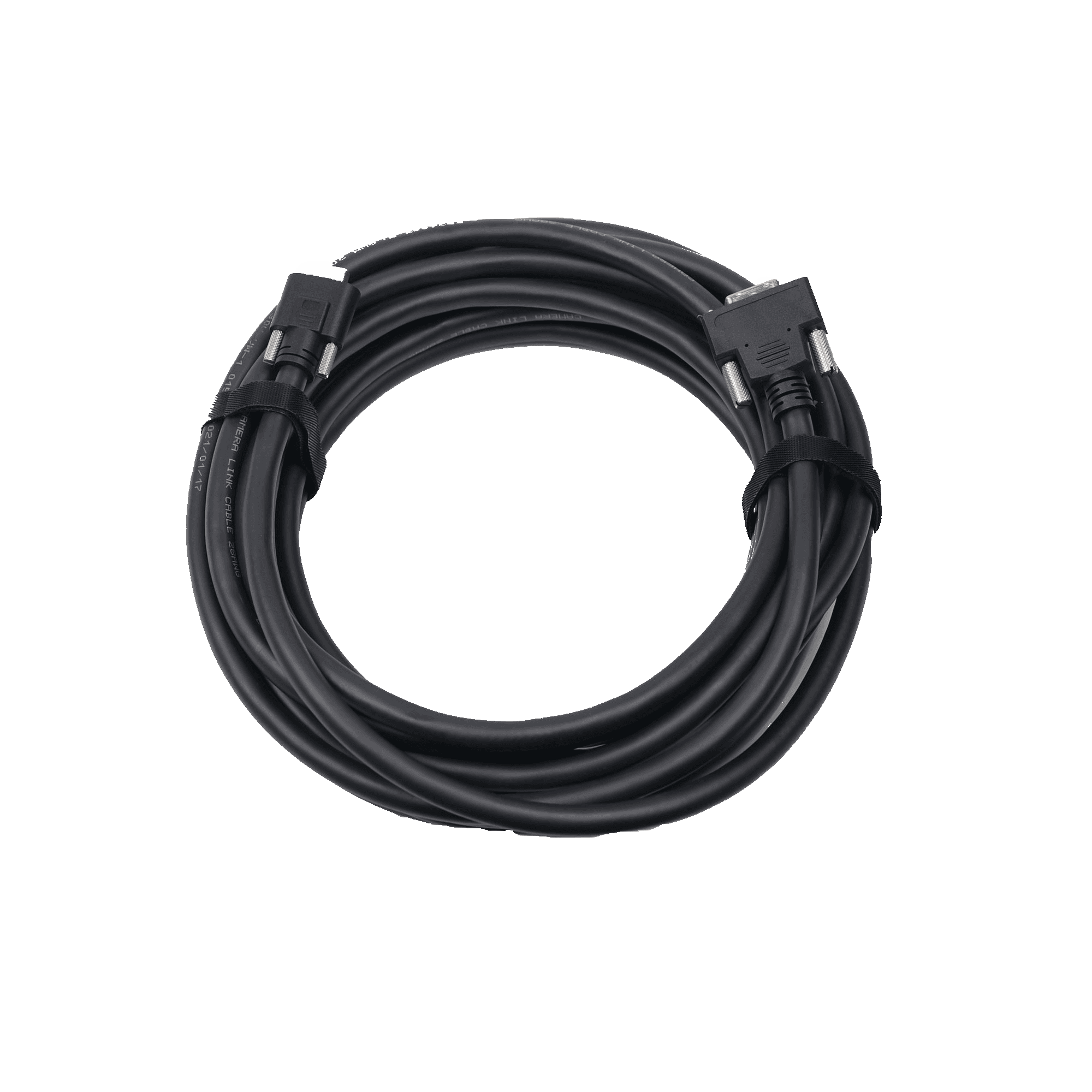

Camera Link Кабели и аксесоари — 3 m, Drag chain
Model
- Product Model
- MV-ACCL-SDR-MDR-HF-3m
- Type
- Camera Link cable(SDR-MDR)，high flex，3m
Physical specification
- End A connector
- SDR26
- End B connector
- MDR26
- Cable diameter
- 9.5 mm
- Length
- 3 m
- Cable mechanical
- UL20276
- Jacket
- PVC
- Cable color
- Black
- Connector model
- made in China
- Connector durability
- 500 cycles
- Min. bending radius
- 114 mm
- Applicable scenario
- Drag chain
- Max. U-type bending cycles
- 5 million times
Electrical specification
- Max. voltage
- 30 VDC
Additional information
- Working temperature
- -20°C~80°C
- Certification
- UL
- Packaging
- Individual package
